THIS IS THE FORD-10
PAGE
|
LET'S GO ROLLER!® ASK ABOUT OUR ROLLER CAM PACK® UPGRADES! |
NEW UPGRADES AVAILABLE:
CALL US FOR DETAILS! |
Ask about our
Fast Track Startup:
That means this engine can be Real
Ready to Run OUT OF THE BOX if you choose our
Fast Track startup, which includes break in, super tuning, jetting, and more.
 |
 |
Also, check out this video!
Great Old School
Sound

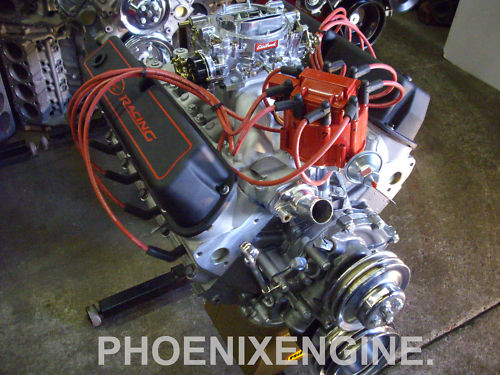

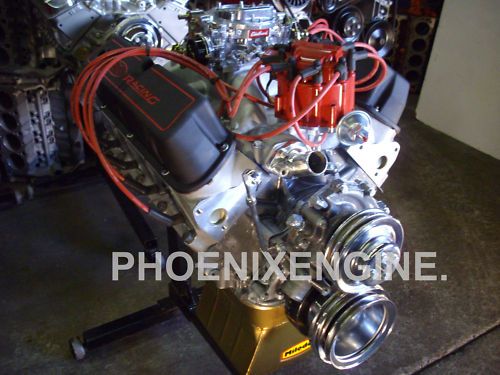

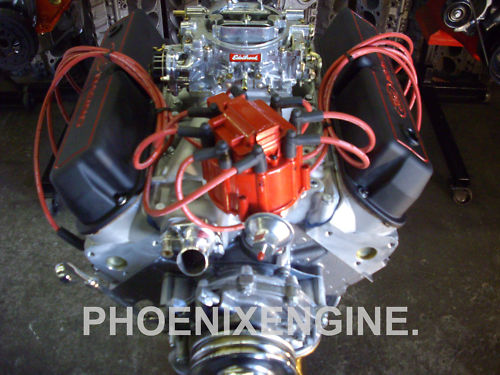

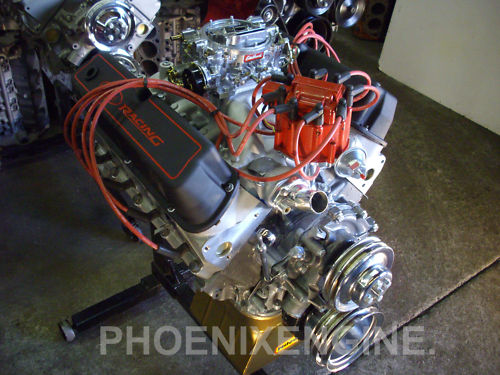

This Power4® Engine Combination would
be a great replacement for mild to hot street cars. This
engine has a ROUGH idle, and a Comp or Howards Cam that
puts out 427+ HP at 5900 rpm with 442+ ft lbs of torque. You
will need a 2500 to 3000 stall speed converter. This
is an excellent engine for the every day driver: Kit
cars, Muscle cars, Street, Hot Rods, Custom Trucks, 4X4s or Jeeps.
This engine was built from one of our Dyno packages
which was
Dyno
tested on a real Super Flow!
Your engine can be Dyno tested for an additional charge.
These are some of the best street high performance engines out there, Dyno tested or Fast Tracked!
All our engines are custom HAND BUILT by professionals in our machine shop!
For Bronco, 4x4, JEEP |
 |
SPECIAL
FEATURES include:
- New Dart, ProFiler, or ProHeader Aluminum racing performance heads
- Aluminum Ford 23° racing cylinder performance heads
- Thicker deck surface for great cooling and improved sealing
- 190cc to 210cc intake runner ports are port matched to the intake, depending upon the application
- 70cc exhaust ports for better flow
- 60 cc combustion chambers
- High performance stainless steel stem intake valves 202
- High performance stainless steel stem exhaust valves 1.6
- Comp screw in studs and guide plates, center spec.
- New bronze valve guides, step locked for no slipping
- ProRace, Scorpion, or Speed full roller rocker arms 1.6, hardened retainers and keepers
- Matched hardened Molly push rods for the correct length
- 10.5, 10.7, 11.1 and 11.7 KEITH BLACK hypereutectic PISTONS
- Forged pistons are also available for an extra charge
- This engine is a seasoned block, hand picked
- STEEL FORGED RODS with ARP rods, bolts
- NODULAR CRANK pro turn, micro polished
- NEW Professional
Products RPM single or dual plane intake manifold.
We also recommend the Edelbrock RPM dual plane intake.
Note: We have many choices available for hood clearance! - Air gap single plane
aluminum intake manifold
for higher rpm and top end only (extra charge) - NEW Holley Carb 750 CFM with electric choke is best for max horsepower.
- NEW Edelbrock Carb 750
CFM with electric choke.
Note: manual choke carburetors and double pump carburetors are optionally available for an extra cost. - Choice
of 5 distributors:
Pertronix Stage 1 is included in price;
Pertronix Billet Stage 2 is extra;
Pro Street HEI distributor is included;
MSD 2 pack is extra;
MSD 6AL 3 pack is extra. - Spark plug wires, spark plugs,
high performance.
- Water pump is standard, high volume is extra.You
must keep and use your own water pump and balancer
pulleys.
- 14" chrome air cleaner included. Custom air
cleaner extra.
- New Ford race or Cobra valve covers are included now
for a short time only in the classic valve cover series!
Please note that aluminum valve covers are extra.
-
New aluminum timing
cover.
-
New Milodon 7 qt oil pan
included... this is a Must!
Please note: 7 qt pan helps the engine stay cool, as proven on our Dyno, and it helps keep drafting the oil pan dry at high rpms.
- This engine is built from one of our Dyno tested
and road proven packages. Your specific engine can
be Dyno tested for an additional charge.
- Call for info on flex plate or flywheel sizes.
- New Pro Race high performance harmonic balancer.
- Call for correct flex plate on automatics.
- Call for info on standard transmissions (4, 5, or
6 speed, etc.)
- Comes complete, intake to oil pan. Some assembly may be needed.
- Engine will run on Premium unleaded fuel+
- This is our TURNKEY PACKAGE for this type
of power engine.
ENGINE PARTS include:
- Power 4® Comp or Howards Cam kit 500, 515, 520, to 550.
- Power 4® Seal Power, Comp or Howards hydraulic lifters.
- Trick Flow spring set, heavy duty (980 series spring sets).
- New Aluminum Heads (see details above).
- High perf Steel Stem intake valves 202.
- High perf Steel Stem exhaust valves 1.6.
- Premium positive valve seals, Blue Viton.
- Heavy duty roller timing chain.
- Controlled internal oil system (a PER® exclusive).
- Heavy duty High volume Melling oil pump.
- Heavy duty steel collar oil shaft.
- Heavy duty oil pickup screen.
- High quality Keith Black
hypereutectic pistons.
Call for an upgrade to forged pistons. - P.E.R.® Seal Power High Perf plasma moly rings.
- Brass freeze plug kit, gallery plug kit.
- High quality rear main seal double lip polyacrylate.
- Fel Pro PermaTorque heavy duty gasket set.
- King or Clevite Main bearings, Real Tri metal, high quality.
- King or Clevite Rod bearings, Real Tri metal, high quality.
- New ARP Rod bolts and nuts installed.
- Cam bearings, high quality 360 Set.
- Fuel pump not included.
- Starter not included.
- Headers not included.
- Don't forget to call us for pricing on Fast Track Start up and Break-in!
MACHINE LABOR includes:
- P.E.R.® 4-angle valve job.
- Mill-matching surfaced heads.
- Heavy duty thick wall Bronze valve guides.
- Valve guides custom cut for posi-seals.
- Blocks are furnace burned to thoroughly clean the engine blocks, and then are shot abraided.
- Jet vat block and magnifluxing.
- Remove and replace all freeze plugs.
- Remove and replace gallery plugs.
- Remove and replace cam bearings.
- Custom centerline boring of block
(true 90 degree V8 centerline boring).
- Power hone to fit pistons and rings.
- Custom crank micro polish radius oil holes.
- Rods pressed off, then heat fitted.
- Rods checked for alignment, ARP rod bolts installed.
- Street Race Balancing.
For
any changes needed, just call and we will build a custom engine
package for you with the horsepower you want. You can also
change the color, choosing from over 25 different colors.
Warranty, Deposit, and Shipping Info:
This engine has a one year
written warranty. Buyer pays actual shipping costs if unable
to pick up engine from our shop in Phoenix AZ. Some state freight
restrictions apply. DEPOSIT REQUIREMENT
IS 60% DOWN, PAYMENT IN FULL WHEN ENGINE IS DONE. (GET A DISCOUNT
WITH A DIRECT DEPOSIT!) We accept Visa, Mastercard, Discover,
American Express, money orders, cashier's checks, and direct
deposit. Business or personal checks
must clear prior to shipping. Arizona residents must add 8.6%
sales tax.
Please call for core requirements.
Call to order this engine:
602-866-8044
Monday through Thursday: 8:30am - 5:00pm
Friday 08:30am - 4:00pm
Saturday: BY APPOINTMENT ONLY
Sunday: Closed
Times listed are Arizona (Mountain Standard time year
round.)
DID YOU
KNOW?
At Phoenix Engine, every Power Engine® is
CUSTOM rebuilt in our machine shop by P.E.R.® professionals,
from start to finish. The Power Engine® Performance
Combination was developed from our over 50+ years of experience
on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, HOT RODS,
CUSTOM MODS, JEEPS, and RESTORATIONS. Established in 1973,
PhoenixEngine.com® has built over 250,000 quality engines to
date.
Please be sure to read our full Disclaimer: CLICK HERE.
10/14/22
6/9/25
6/10/25
8/2/25 txt
8/6/25 txt
8/7/25 vid,txt

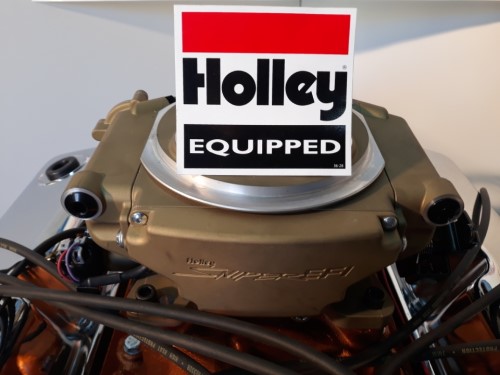

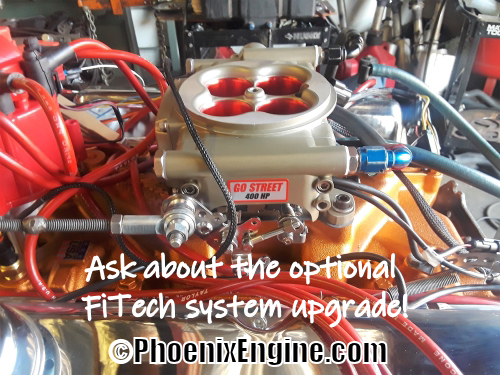

Don't forget to ask about an upgrade to a Holley Sniper
fuel injection system!
5/16/24
* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!
Please note photos may vary from actual product as all our engines are custom built.
