CHEVY 383ci — 355 to 427 HP 4 BOLT MAIN
MIDNIGHT TURNKEY CRATE ENGINE
Torque Monster - One of our most
popular engines! Give us a call!
A "Crate Engine" means "Intake
to Pan." This is our new TURNKEY packaging; just call us
regarding which turnkey package you would like.
THIS IS A LIMITED TIME SALE PRICING
The normal price of these engines is $100 more. Buy now to receive the special
pricing below!
Base Pricing and Torque Ranges*
Chevy 383ci — 355 HP: From $4195 * -
torque range: 406 - 412
ft lbs torque
Chevy 383ci — 375
HP: From $4295 * - torque range: 415
- 428 ft lbs torque
* These engines (350 - 375 HP) come with the 76cc GM heads.
Check in the footnotes below for special particulars for these engines.
Chevy 383ci — 406 HP or 409 HP: From $4495 -
torque range: 448 - 468 ft lbs torque
The 406-409HP engines come with iron Dart heads. The 406HP engine
comes with a dual pattern cam. The 406HP cam has vacuum for
power brakes. Still has good sound.
The 409HP engine comes with a single pattern cam. The 409HP
engine cam has a little less vacuum, with a great Old School
sound.
This engine comes with the 4 barrel aluminum or polished high
rise. (Polished is extra.)
Chevy 383ci — 426 or 427HP: From $4995 -
torque range: 468 - 484 ft lbs torque
The 426-427HP engines come with iron Dart heads.
The 426HP engine comes with a dual pattern cam.
The 426HP engine cam has vacuum for power brakes.
Still has good sound.
The 427HP engine comes with a single pattern
cam. The 427HP engine cam has a little less vacuum,
with a great Old School sound.

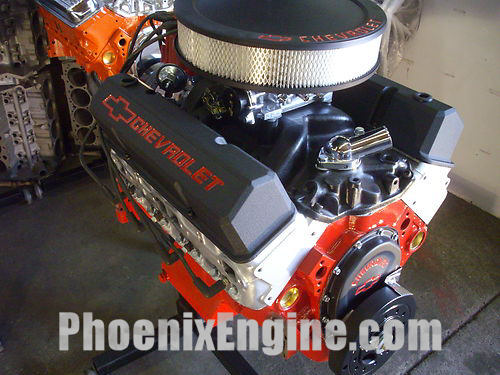

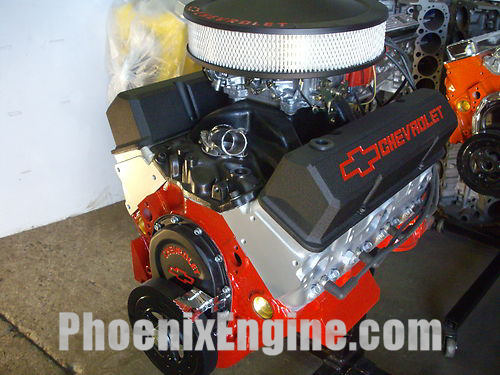

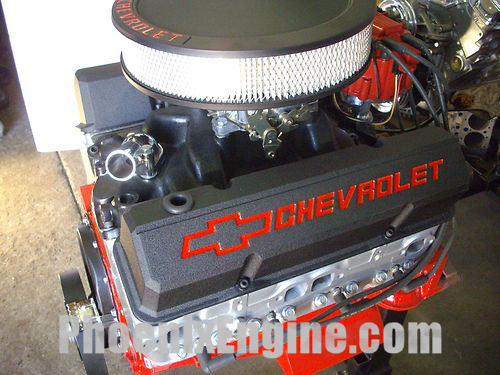

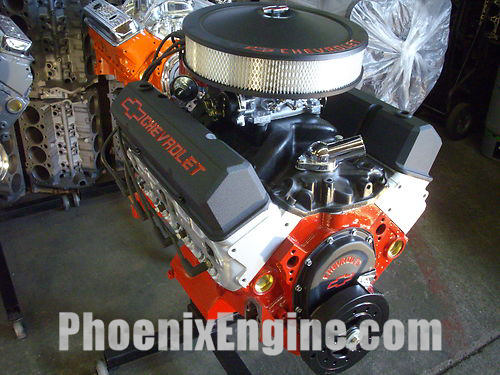

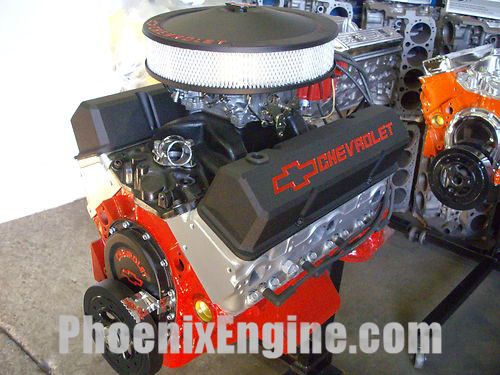

These engines come with the 4 barrel high
rise, aluminum (or polished for extra), or painted
black as seen in the photos for no extra charge
(satin black or flat black).
* Please
call for complete torque estimations.
*Torque
estimates vary per engine specs, based on size
of carburetor, type of intake, type of heads,
type of cam...
Ask about
our Fast Track Startup:
That means this engine can
be Real Ready
to Run OUT OF THE BOX if
you choose our Fast Track startup, which includes
break in, super tuning, jetting, and more.
If
you choose a Fast Track Start Up, we have
special pricing right now!
Click
HERE to learn more
 about
FAST TRACK, and
to view a sample video.
We
build these same engines with the second generation
Vortec head, which is becoming very popular.
Ask for pricing on higher horsepower engines such as carbureted, fuel injected,
and blower engines. We can build any size engine you need!
Any good motor head will love this old school
musclecar street killer!
This
Power Engine Combination would be
GREAT in your Muscle Car, Street Rod, Truck, 4 X 4, or Jeep. This
is an excellent Street Monster Machine engine! This
Engine is a 4-bolt Seasoned Heavy Duty Chevy TOTAL MACHINE
Small Block. This engine
will run on pump gas, depending upon variables in your order.
Special
features on this crate engine include these new parts and
more: (Be sure to scroll down the page to see a more detailed
listing.)
-
SPEED PRO HYPEREUTECTIC
PISTONS
9:5, 9:7, 10:1, 10:2, 10:5
-
Cams are BIG
Hydraulic Dual Pattern or Single Patterned High performance
(Cam sizes: 468, 478, 490, 510, 521)
(Piston and cam sizes depend upon the engine
package and HP you choose.)
-
2500 Stall Speed Convertor Required
This One is a real TORQUE MONSTER
-
Holley 750 CFM carburetor,
polished.

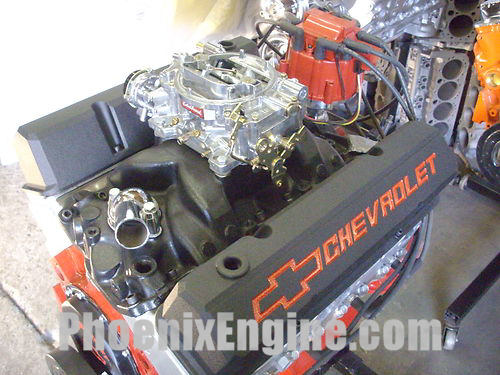

Edelbrock 750 CFM carburetor accepted
for smaller HP engines.
-
Pro Billett HEI distributor
with MSD kit included,
MSD 2 pack or MSD 6AL 3 pack is extra.
-
Plug wires and spark
plugs.
-
Chrome air cleaner
included,
black is extra.
-
This engine does not include water pump and pulleys.
-
Performance roller
timing chain
-
High performance Screw In Studs, Guide plates
-
Roller Rockers, Molly Push Rods
-
Steel Forged
Rods 550 HP
-
New custom
Eagle or Scat crank
-
Race balanced,
street blueprinted, Bored on center
-
Tall chrome
valve covers
-
Black Aluminum slant-edged valve covers
as seen in photos are available as an upgrade
- call for special pricing
-
Chrome timing chain cover included, black
is extra.
-
5 qt oil pan, 7 qt oil pan included with
bigger engines.
-
NEW intake
manifold or black manifold. (Polished is extra.)
-
Professional
8" Harmonic Balancer, timing flag.
-
Flex plate for automatics included.
Call on standard transmissions, like
4-speed, 5-speed, 6-speed.
-
Steel flywheel is extra.
- Built from one of our Dyno tested and road proven Dyno packages. Your specific engine can also be Dyno tested, for an additional charge.
- Call for info on flex plate or fly wheel.
- Call for correct flex plate on automatics.
- Call for info on standard transmissions (4 or 5 speed, etc.)
- Comes complete, intake to oil pan. Some assembly may be needed.
-
These parts and more are included; please
scroll down for more details.
Your Power Engine®
ENGINE
PARTS include:
- Power® Comp cam kit
(Cam sizes: 468, 478, 490, 510, 521)
- Power® Comp HP hydraulic lifters
- Power® spring set, heavy duty (940 - 980
series spring sets)
- One-piece steel intake valves:
202 for the higher hp iron Dart heads such as the 406hp and up
- One-piece steel exhaust valves:
1.6 for the higher horsepower Dart heads such as the 406hp
and up.
- Premium positive valve seals, VITON RACE
- Controlled internal oil system (a P.E.R. exclusive!)
- High Performance Roller timing chain
- Heavy duty, high volume Melling oil pump
- Heavy duty steel collar oil shaft
- Heavy duty oil pickup screen
- High quality Speed Pro hypereutectic
pistons
- Speed Pro High Performance
plasma molly rings
- Brass freeze plug kit, oil gallery kit
- High quality rear main seal double lip polyacrylate
- Fel Pro PermaTorque heavy duty gaskets and gasket
set
- Clevite Main bearings, Tri metal, high quality
- Clevite Rod bearings, Tri metal, high quality
- New 383 Eagle or Scat series crank shaft
- New powdered GM rods 550 HP, with rod bolts, and
rod nuts installed
- Cam bearings, high quality 360 set
Your Power Engine®
MACHINE
LABOR includes:
- P.E.R. 4-angle® valve
job
- Dart blueprinted mill-matched surface heads
- Heavy duty thick wall valve guides
- Valve guides custom cut for posi-seals
- Jet vat block and magnifluxing
- Remove and replace all freeze plugs
- Remove and replace gallery plugs
- Remove and replace cam bearings
- Custom centerline boring of block
True 90 degree V8 centerline boring
- Power
hone to fit pistons and rings
- New Custom Eagle or Scat crank Micro polish radius oil holes
- Rods pressed off, then heat fitted
- Rods checked for alignment
- Street race balancing and blueprinting
Comes Completely assembled
>>> FOR MACHINE SHOP WORK, CLICK HERE <<<
FOR ANY
CHANGES NEEDED, JUST CALL US AND WE WILL BUILD A CUSTOM
ENGINE PACKAGE FOR YOU FROM 375 HORSEPOWER TO 750+ HORSEPOWER.
YOU CAN ALSO CHANGE THE COLOR, CHOOSING FROM OVER 25 DIFFERENT
COLORS. ALL OUR ENGINES 327- 350- 383- 396- 427- 454 ARE
CUSTOM HAND BUILT.
Call to Order this engine
Toll Free 1-888-766-8044
08:00am - 5:00pm Monday-Friday
09:00am - 1:00pm Saturday
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.
This Power Engine
is totally REBUILT in our Machine Shop by professionals from
start to finish. The Power Engine Performance Combination
was developed from our over 45 years of experience on MUSCLECARS,
STREET STRIPS, CUSTOM TRUCKS, 4x4s, and JEEPS. PhoenixEngine.com
has built over 140,000 quality engines to date.
Warranty and Shipping Info:
This engine has a
one year written warranty. Buyer pays actual shipping
costs if unable to pick up engine from our shop
in Phoenix AZ. Some state freight restrictions
apply. Payment due in full prior to shipping. We
accept Visa, Mastercard, Discover, American Express, money orders, cashier's
checks, and direct deposit. (GET
A DISCOUNT WITH A DIRECT DEPOSIT!) Business
or personal checks must clear prior to shipping.
Arizona residents must add 8.6% sales tax.
Please call for core requirements.

SPECIAL PROMO!! Call NOW
for FREE SHIPPING to Southern California! We also offer
super shipping rates to all 48 continental states. Ask
about shipping to Hawaii, Alaska, and international destinations.
Call PhoenixEngine.com today to order!
Toll Free: 1-888-766-8044
* FOOTNOTES pertaining to 76cc GM heads on the Chevy 383cc 350HP, 360HP, 365HP and 375HP engines:
Please note that the
stud and guide plate kit is extra, and roller tip and roller rockers are an extra charge.
Disclaimer: Please note that some parts are based
on availability. The brand names listed above are guidelines;
the exact brand name may not be available at the time
we build your engine. Pricing is deemed to be correct at time
of posting, but is not guaranteed. It is listed
as a guideline only. Please call us for complete
pricing on the engine built to your specific requirements.
These engines are built from our Dyno
tested packages in our shop and road proven.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!
Please be sure to read our full Disclaimer: CLICK HERE.
|

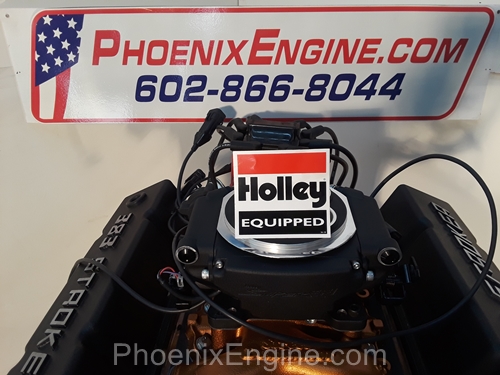

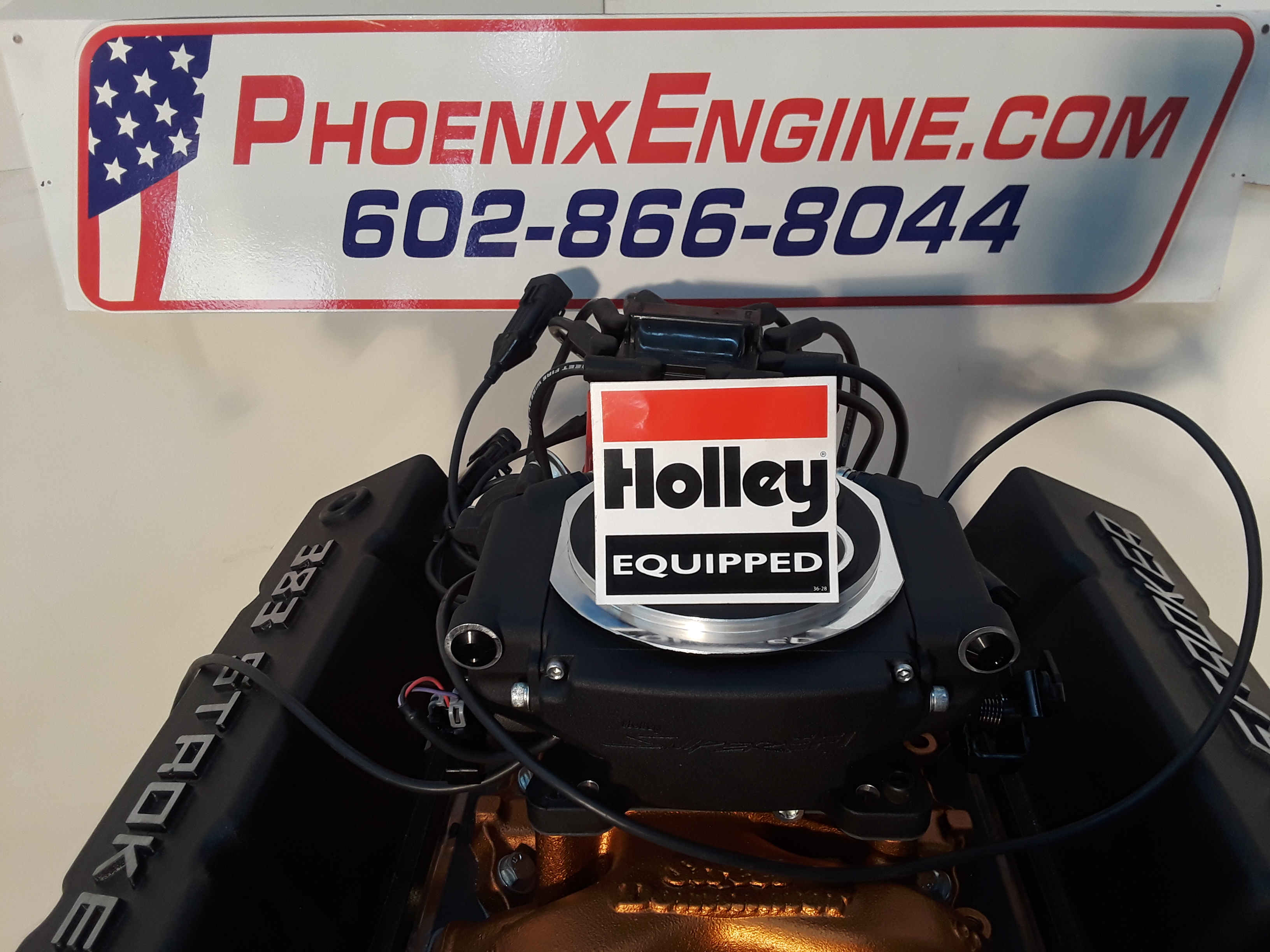

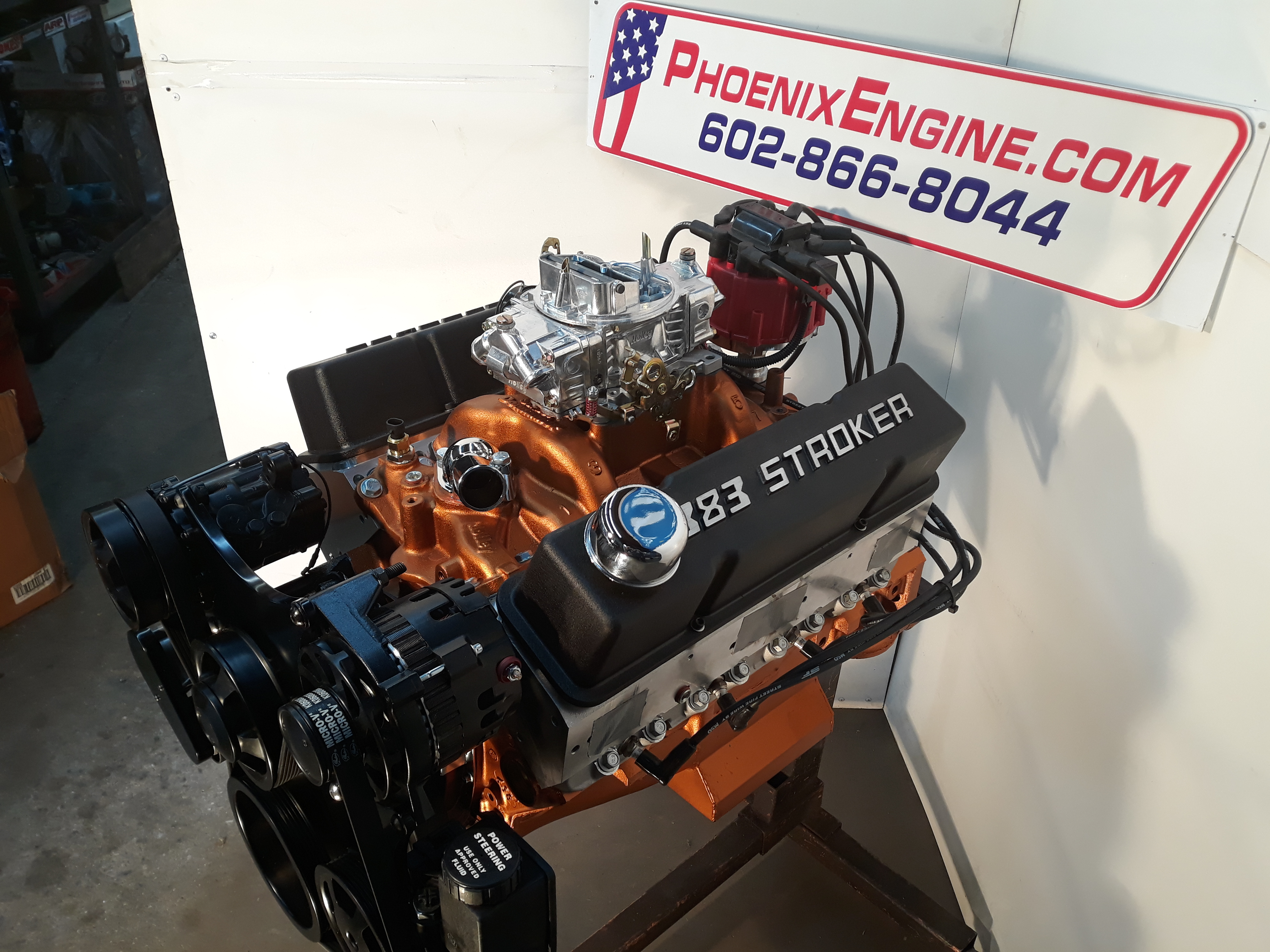

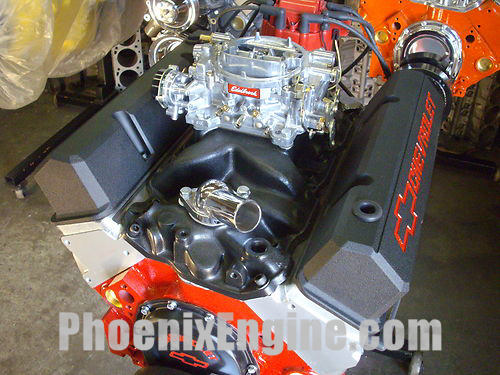

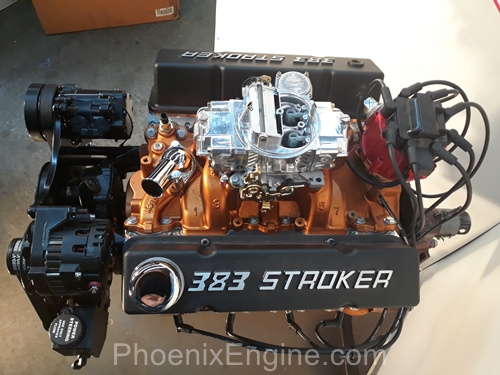

Please note that some of
the photos below show our optional FiTech or Holley Sniper
fuel injection system, or a Serpentine system upgrade. Call
us for the best pricing on these upgrades!
* Note: When we custom build your engine,
you can choose from over 25 different colors or you can
supply the paint to have your engine painted the same color
as your car's finish!
Please note photos may vary from actual product as all our engines
are custom built.
|
