CHEVY 383ci — 350HP to 502HP
ORANGE HIGH PERFORMANCE
TURNKEY CRATE ENGINE WITH IRON DART HEADS or SECOND GENERATION VORTEC HEADS

THIS IS A LIMITED TIME SALE PRICING
The normal price of these engines is $100 more. Buy now to receive this special pricing!

Pricing:
383ci 350 or 360 HP: from $4195 — 405 to 410 ft/lbs torque.
These have dual pattern cam for vacuum.

383ci 365 to 375 HP: from $4295 — 415 to 430 ft/lbs torque.
These have dual and single pattern cam, your choice with vacuum.

These engines (350 - 375 HP) come with the 76cc GM heads.


383ci 406 or 409 HP: from $4495 — 448 to 468 ft/lbs torque

The 383ci 406HP engines come with Dart 202 heads. The 383ci 406HP engine comes with a dual pattern cam. The 383ci 406HP cam has vacuum for power brakes. Still has great sound.

The 383ci 409HP engine comes with a single pattern cam. The 383ci 409HP engine has a little less vacuum, with a great Old School sound.
This engine comes with the 4 barrel aluminum or polished high rise.


383ci 426 or 383ci 427 HP: from $4995 — 468 to 484 ft/lbs torque

The 383ci 426-427HP engines come with Dart 202 heads. The 426HP engine comes with a dual pattern cam. The 383ci 426HP engine cam has vacuum for power brakes. Still has good sound.

The 383ci 427HP engine comes with a single pattern cam. The 383ci 427HP engine has a little less vacuum, with a great Old School sound.
These engines can come with the 4 barrel high rise, aluminum or polished intake, or your choice of an aluminum or polished high rise air gap.



383ci 454 HP: from $5695 —500 ft/lbs torque.

The 383ci 454HP engines come with Dart 202 heads.

The 383ci 454HP engine comes with a dual pattern cam. The 383ci 454HP engine cam has little less vacuum for power brakes. Still has good aggressive sound.


383ci 475 HP: from $6295 — 510 to 530 ft/lbs torque.

The 383ci 475HP engines come with Dart 202 heads.

The 383ci 475HP engine comes with a single pattern or dual pattern cam. The 383ci 475HP engine has a lot less vacuum. Great Old School sound.


383ci 502 HP: from $6795 — 526 to 538 ft/lbs torque.

The 383ci 502 HP engines come with Dart 202 heads.

The 383ci 502 HP engine comes with a single pattern or dual pattern cam. The 383ci 502 HP engine has a lot less vacuum. Great Old School sound.




Ask about our Fast Track Startup:
That means this engine can be
Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.

If you choose a Fast Track Start Up, we have special pricing right now!

Click HERE to learn more
Fast Track animationabout FAST TRACK, andFast Track animation
to view a sample video.

This is a special UPGRADE DEAL for a great price that includes new Dart 202 Heads! These new street/race heads have high flow intake runners with 202 valves, plus high flow caption chamber breathing!!
It's the best street performance yet!

If you choose ALUMINUM heads for pump gas, please CALL US FOR SPECIAL PRICING!

SPECIAL FEATURES ON THIS TURNKEY CRATE ENGINE INCLUDE THESE NEW PARTS AND MORE:
(Some items may vary depending upon the size HP engine you choose. Be sure to scroll down the page to see a more detailed listing.)

  • New Dart heads with 202 intake valves and 1.6 exhaust valves.
    or Second Generation Vortec heads.
  • Speed Pro hypereutectic pistons, 9.5 to 11.5 depending upon your choice of horsepower engine; or ask us about forged pistons for the higher horsepower engines at an additional charge.
  • Cam range of 470 to 520+, hydraulic dual patterned high performance cam for vacuum, or single pattern cam. SpeedPro or Comp cam.
  • 2500 or 3000 stall speed convertor required.
    These bigger engines are real STREET MONSTERS!
  • Holley 750 CFM carburetor, polished.
  • Pro Billett HEI distributor with MSD kit.
  • MSD 2 pack or MSD 6AL 3 pack is extra.
  • Plug wires and spark plugs.
  • Chrome air cleaner included, black is extra.
  • Water pump, water pump pulleys, and crank shaft pulleys are included.
  • Heavy duty roller timing chain, high performance.
  • P.E.R. SS screw in studs, guide plates.
  • SST roller rockers, SS molly push rods.
  • New scat stroker crank, 7000 to 9000 series.
  • Steel forged rods GM 550 high performance.
  • Street race balanced and blueprinted, bored on center.
  • Tall chrome plain valve covers included.
  • Chrome timing chain cover included,
    aluminum timing chain cover available for an additional charge.
  • 7qt oil pan, chrome or steel.
  • New Air Gap intake manifold: aluminum is included, or you may choose polished as an optional upgrade.
  • Pro 8" harmonic balancer, flex plate included.
  • GM Bow Tie slant-edge aluminum valve covers are available for an additional charge. (Vortec heads require centerbolt valve covers: chrome or black is included in price, custom is an extra charge.).
  • Flex pate for automatic transmission included,
    call us on standard transmissions (4, 5, or 6 speed), flywheel extra.
  • Call us on colors, note many colors available.
  • Built from one of our Dyno tested and road proven packages. Your specific engine can be individually Dyno tested for an additional charge.
  • Call for info on flex plate or fly wheel.
  • Call for correct flex plate on automatics.
  • Call for info on standard transmissions (4 or 5 speed, etc.)
  • Comes complete, intake to oil pan. Some assembly may be needed.


What comes with your Power 3® or Power 4® Engine?

Here's a listing of the parts and machine labor for your Power Engine® from PhoenixEngine.com.

Your Power Engine® ENGINE PARTS include:

  • Power® cam kits from 470-520 Speed Pro, Comp cams
  • Power® hydraulic lifters to match cam
  • Power® spring set, heavy duty (940 to 1000 series spring sets)
  • New Dart heads, street, high performance
    or Second Generation Vortec
  • Air Gap manifold - plain aluminum is included. Polished intake available at an extra charge.
  • One piece stainless steel intake valves 202
  • One piece stainless steel exhaust valves 1.6
  • Premium positive valve seals, polyacrylate, Viton
  • Heavy Duty roller timing chain
  • Controlled internal oil system (a Phoenix Engine exclusive!)
  • Heavy duty, high volume Melling oil pump
  • Heavy duty steel collar oil shaft
  • Heavy duty oil pickup screen, welded
  • High performance Speed Pro hypereutectic pistons, or ask us about forged pistons as an upgrade at an additional cost.
  • P.E.R.® HP Seal Power plasma molly rings
  • Brass freeze plug kit, and oil gallery kit
  • High quality rear main seal, double lip polyacrylate
  • Fel Pro PermaTorque heavy duty gaskets and gasket set
  • Clevite 77 or King main bearings, Real Tri metal, high quality
  • Clevite 77or King rod bearings, Real Tri metal, high quality
  • New 383 scat series crank shaft, 7000 to 9000 series
  • 550 high performance rods and high performance nuts installed
  • Cam bearings, high quality 360 Set

Your Power Engine® MACHINE LABOR includes:

  • P.E.R. 4-angle® valve job
  • Blueprint mill-match surface heads
  • Heavy duty thick wall valve guides
  • Valve guides custom cut for posi-seals
  • Jet vat block and magnifluxing
  • Remove and replace all freeze plugs
  • Remove and replace gallery plugs
  • Remove and replace cam bearings
  • Custom centerline boring of block
    (true 90 degree V8 centerline boring)
  • Power hone to fit pistons and rings
  • Custom crank micro polish radius oil holes
  • Rods pressed off, then heat fitted
  • Rods checked for alignment
  • Street balancing and blueprinting



THIS IS OUR TURN KEY PACKAGE FOR THIS HIGH POWER ENGINE.

This one is a real THUMPER, a TORQUE MONSTER, with 202 valves! The engine has a ROUGH idle, SPEED PRO CAM that puts out 409 HP at 5900+ rpm and 440+ ft lbs of torque.

For any changes needed, just call and we will build a custom engine package for you with the horsepower you want. You can also change the color, choosing from over 25 different colors.

ALL OUR ENGINES ARE CUSTOM HAND BUILT:
327- 350- 383- 396- 427- 454 AND MORE!

This Power Engine® combination will be great in your musclecar, street, strip, hot rod, kit car, custom truck, 4X4, or Jeep!!

This engine is a 4-bolt seasoned heavy duty Chevy small block. GREAT OLD SCHOOL SOUND! The engine will run on 91+ unleaded fuel.

This is an awesome street High Torque engine!

Call to Order this engine
Toll Free 1-888-766-8044
08:00am - 5:00pm Monday-Friday
09:00am - 1:00pm Saturday
(Arizona does not observe Daylight Savings Time. We are -7 GMT, or in other words Mountain Standard Time all year round.)

This Power Engine® is totally REBUILT in our Machine Shop by professionals from start to finish. The Power Engine® Performance Combination was developed from our over 45 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, and JEEPS. PhoenixEngine.com has built over 140,000 quality engines to date.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Payment due in full prior to shipping. We accept Visa, Mastercard, Discover, money orders, cashier's checks and direct deposit. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) Business or personal checks must clear prior to shipping. Arizona residents must add 8.6% sales tax.
Please call for core requirements.

We accept Visa    We accept MasterCard
   Discover credit card is accepted at Phoenix Engine

Call PhoenixEngine.com today to order!
Toll Free: 1-888-766-8044

Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested and road proven packages in our shop.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

Please be sure to read our full Disclaimer: CLICK HERE.

PC updated 6/05/12, 10/15/12
Txt updated 10/15/12
PC updated (added HPs) 7/30/13
10/14/13 txt/core
12/16/13 txt
4/30/14 txt & pc
5/8/14 pc, txt
6/3/14 txt (140K engines & 44 yrs)
9/20/14 txt
10/2/14 txt
10/31/14 txt & pc
11/14/14 txt& pc
12/7/15 hours
3/25/16 txt, bullets, moveup
9/14/16 txt,dyno,dsclmr
2/18/17 pc,txt
5/25/17 tax
10/18/17 txt

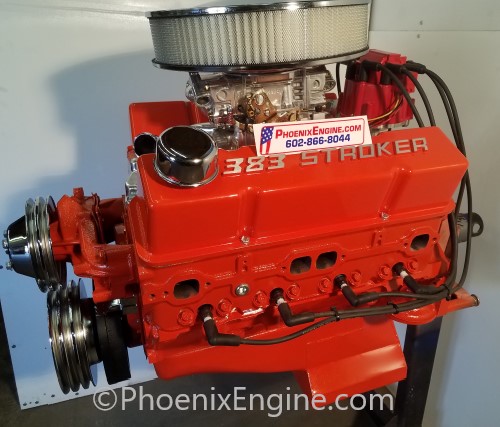

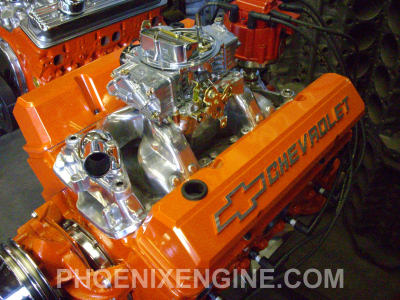

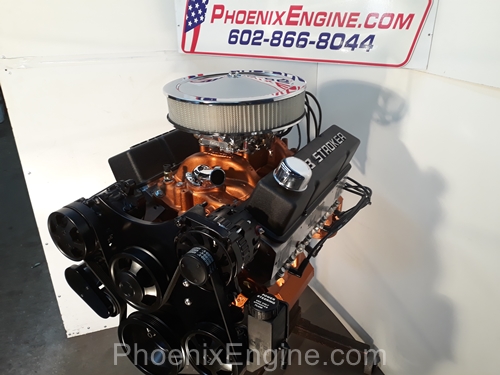

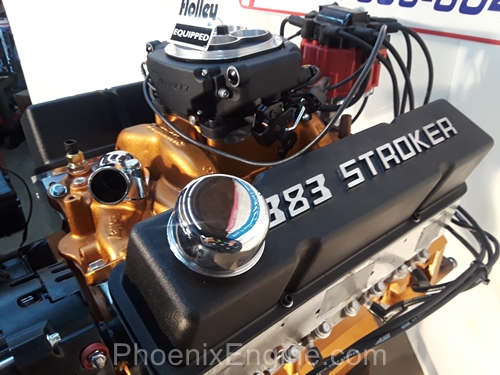

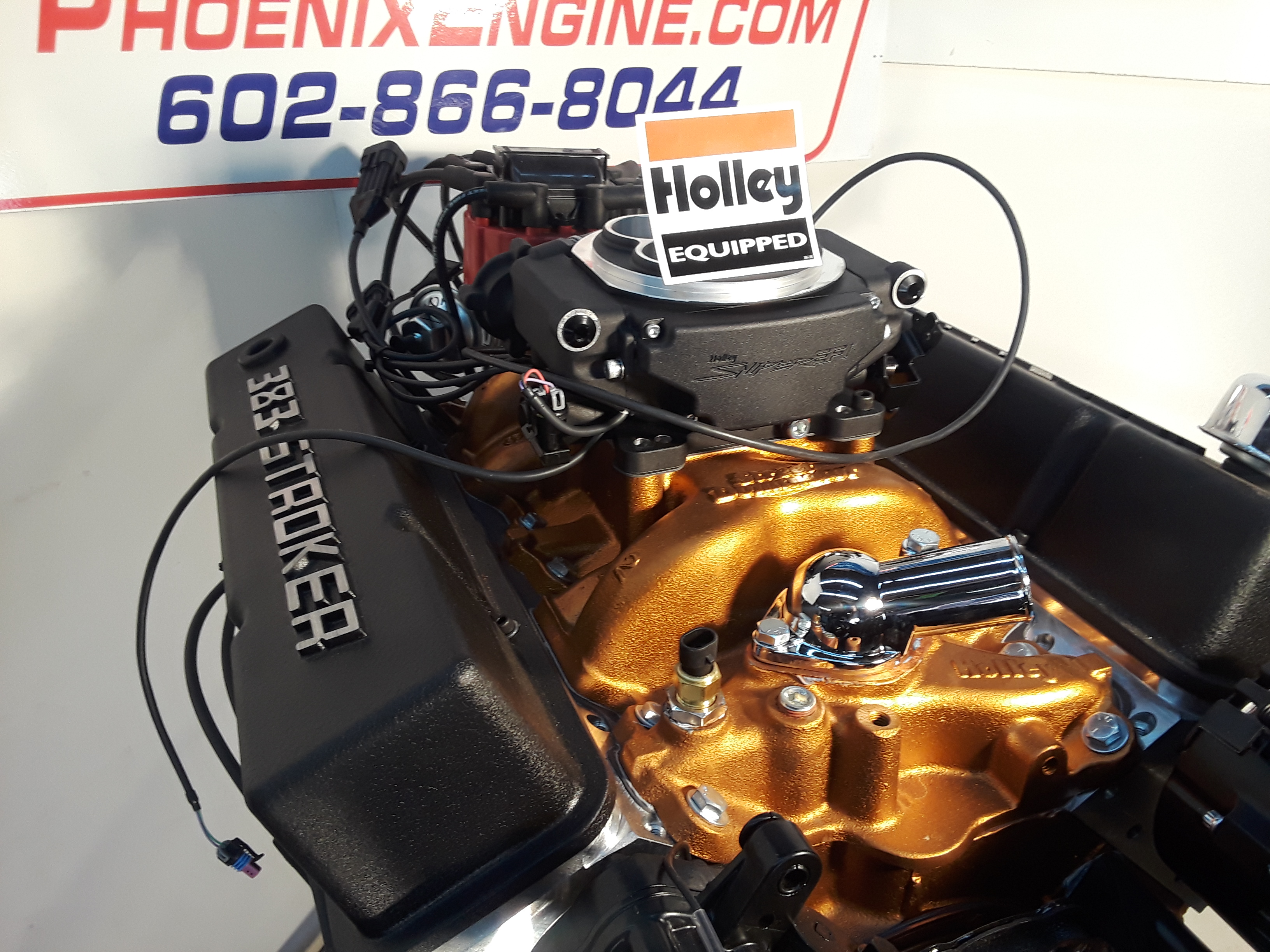

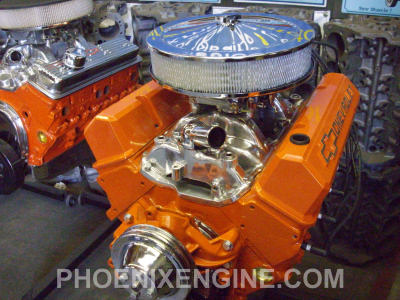

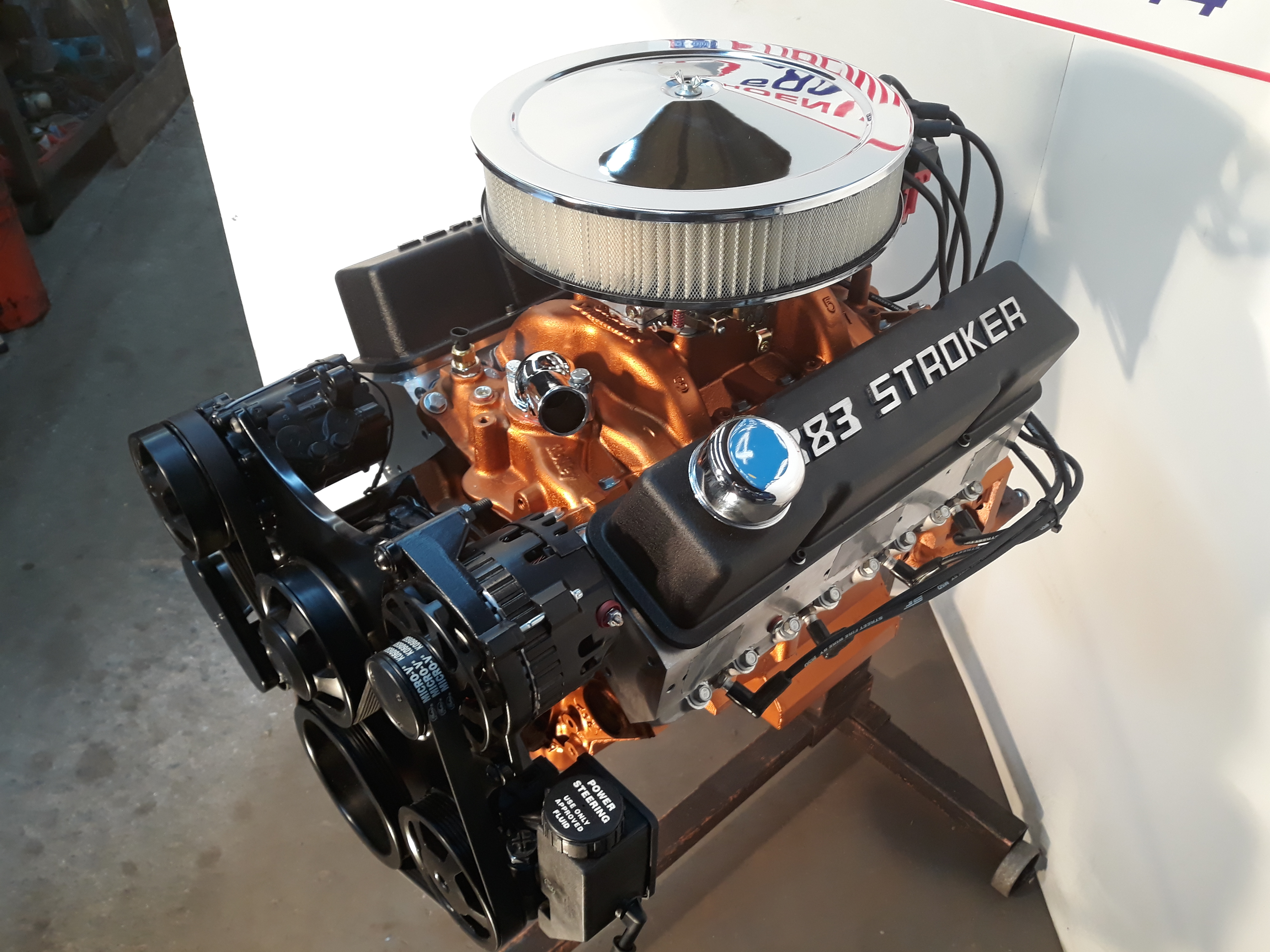

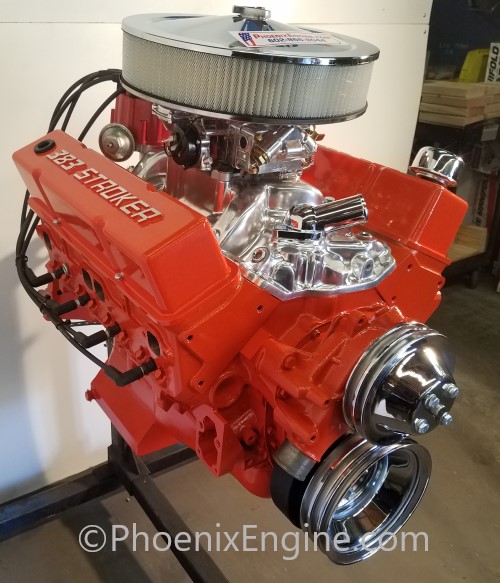

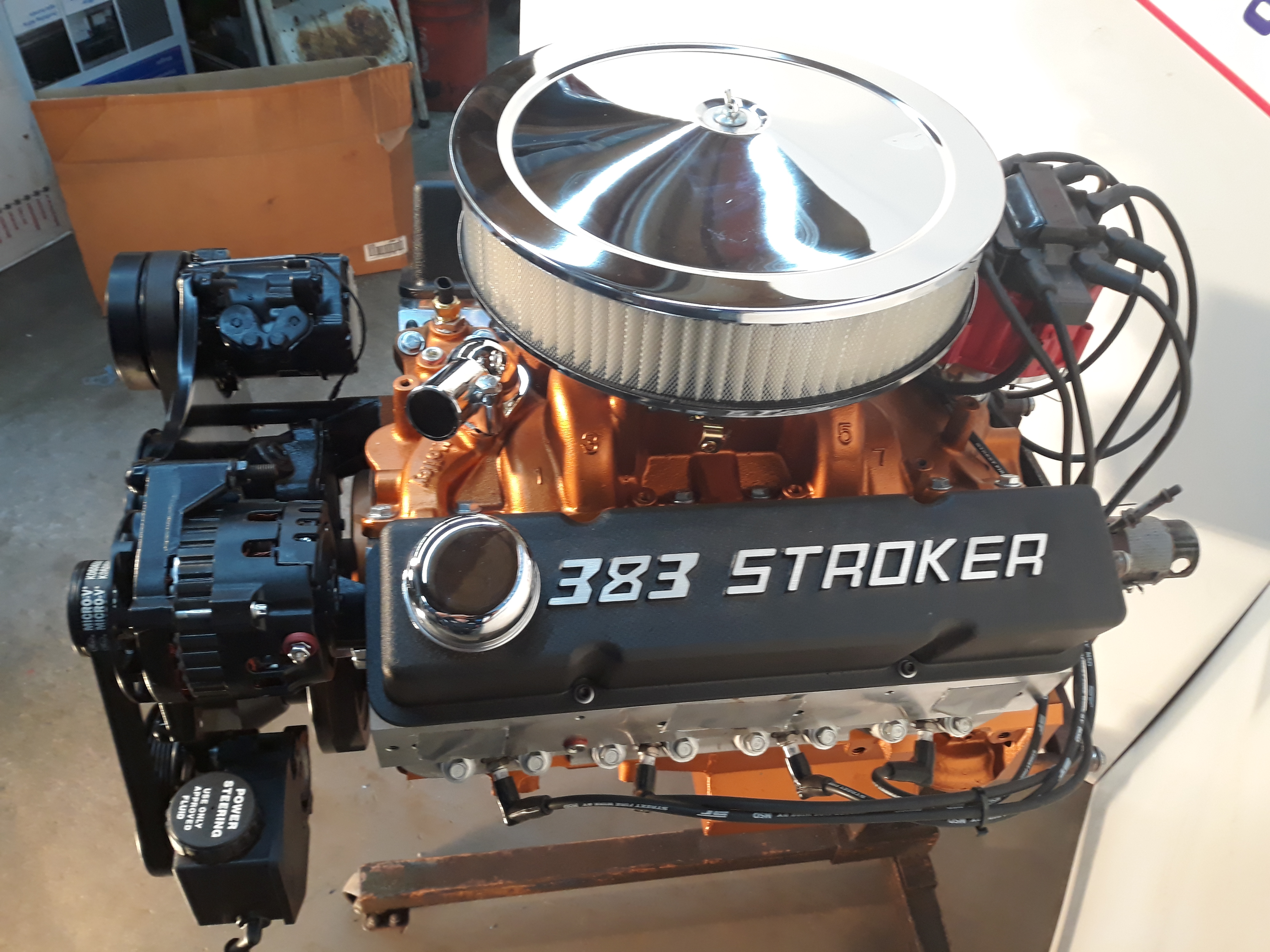

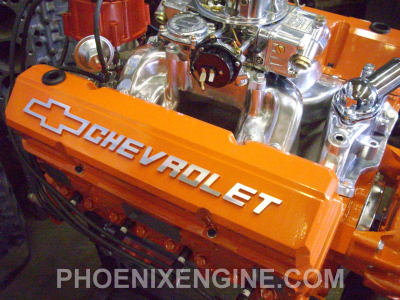

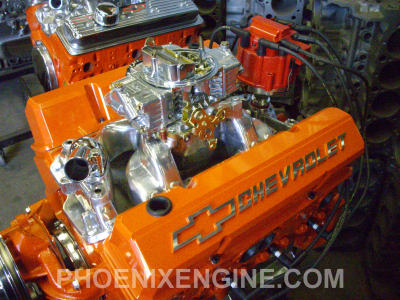

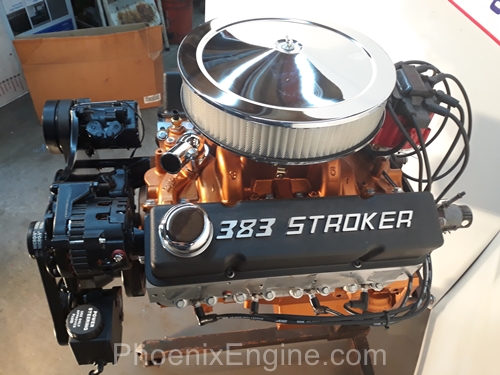

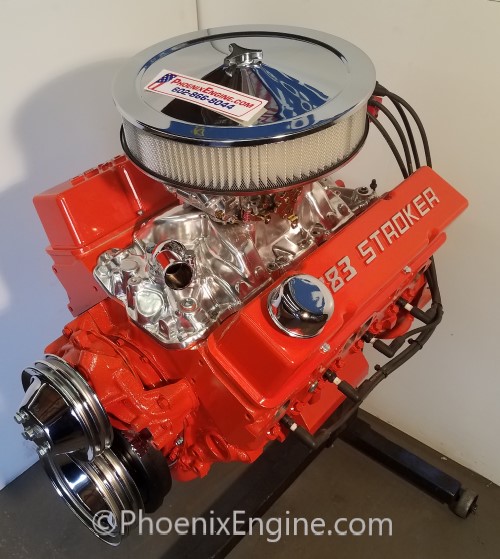

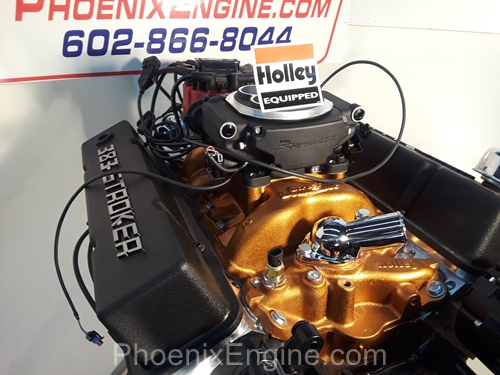

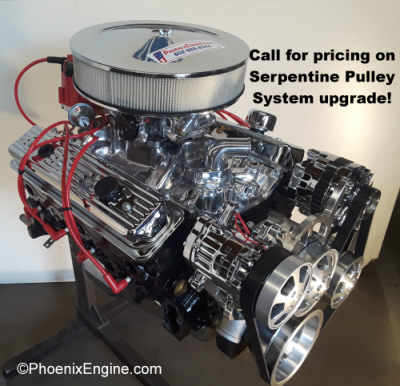

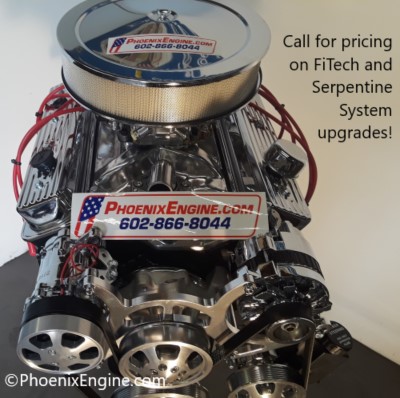

Chevy 383 ci 409 to 475 hp

Chevy 383 ci 409 to 475 hp

Chevy 383 ci 409 to 475 hp

Chevy 383 ci 409 to 475 hp

Chevy 383 ci 409 to 475 hp

Chevy 383 ci 409 to 475 hp

Chevy 383 ci 409 to 475 hp



This engine is also available in other colors and with the Fast Track Option.



* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
