355 HP to 365 HP
375 to 400 HP
Fast Fuel TBI 4 Barrel
Fast Track turn key package
from $5995 to $6995, depending upon package.
* If you wish to supply us with your own injection system,
there is an extra labor charge for second break-in/startup/tuning.
High Performance with
YOU IN MIND FOR THE STREET!
Power 3® TBI high performance
and it comes with a 1 year warranty!

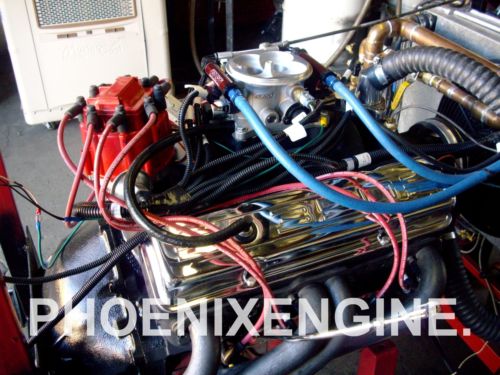

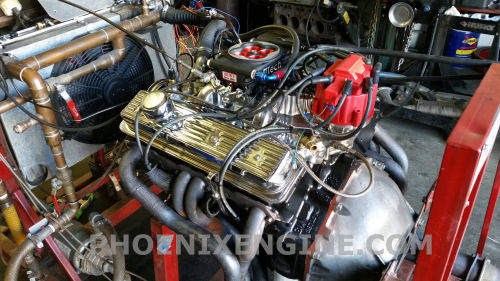

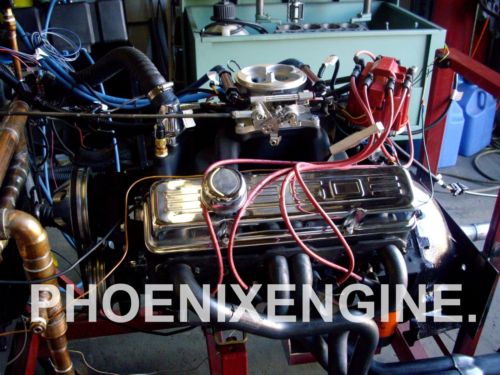

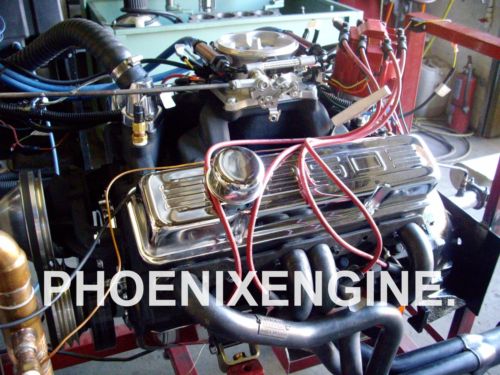

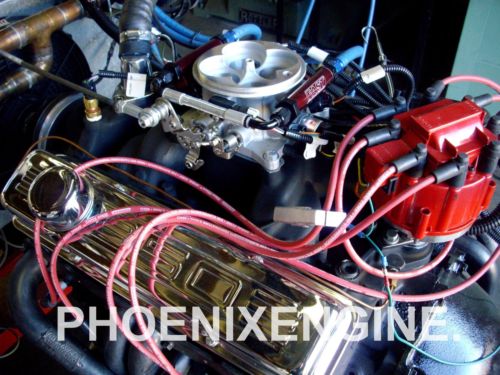

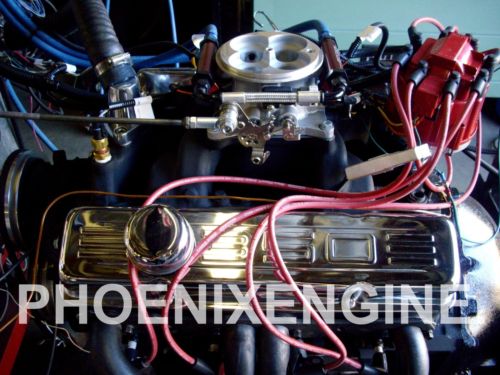

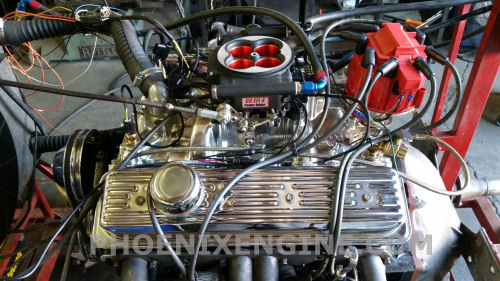

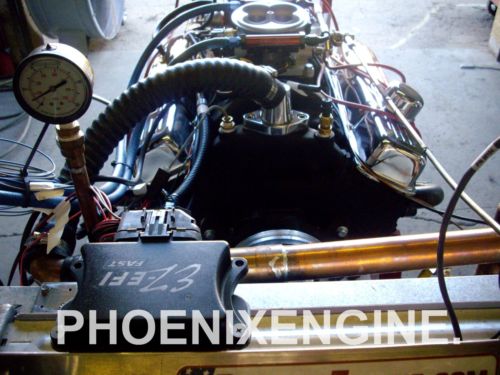

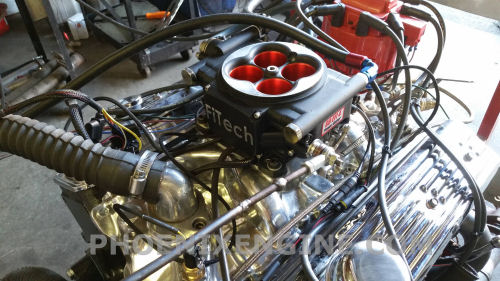

FAST FUEL TBI 4 barrel computer system.
This is a complete ready-to-run hot system.
Best TBI Mild to Hot Street.
This Chevy High Performance engine is built from our Dyno Tested and road proven package, which Dyno tested at 412
ft/lbs torque for the 375HP.
Your specific engine can be Dyno tested for an additional charge.
Ask about our Fast
That means this engine can
Ready to Run OUT OF THE BOX if
you choose our Fast Track startup, which includes
break in, super tuning, jetting, and more.
you choose to do a Fast Track Start Up, we have special
pricing right now on these engines!
HERE to learn more
FAST TRACK, and
to view a sample video.

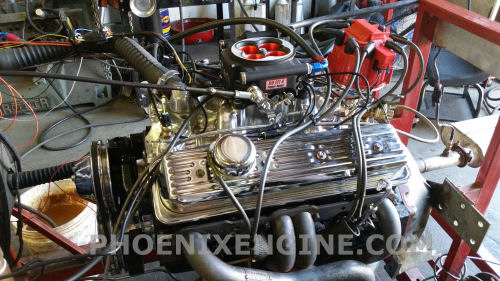

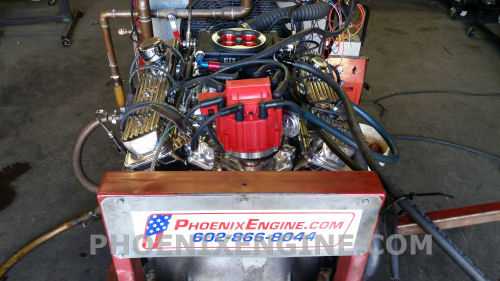

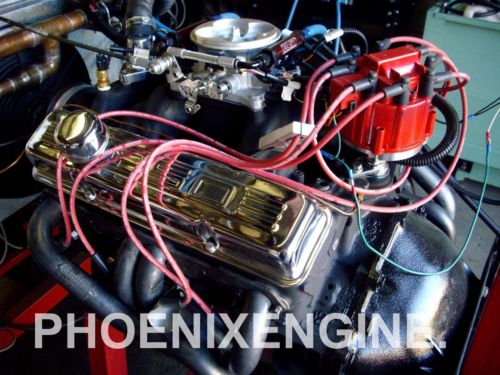

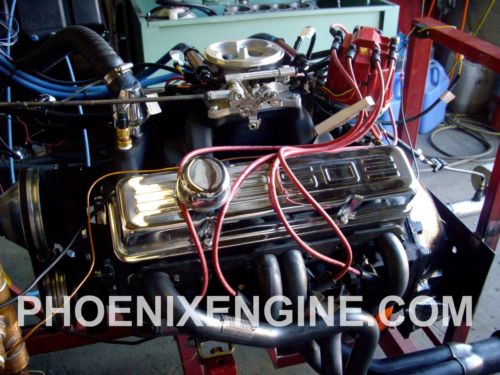

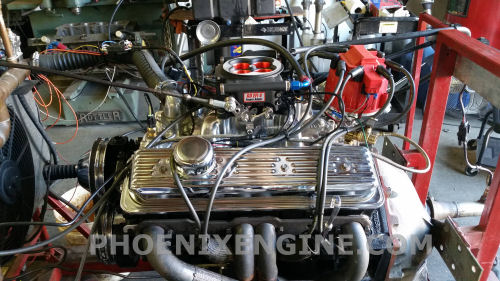

This engine was built from one of our DYNO packages and would be great
in your muscle car, street, strip, hot
rod, kit car, custom truck, 4X4,
It is an excellent street machine engine, with a great OLD
SCHOOL SOUND! The engine
is a 4-bolt seasoned
heavy duty Chevy Small Block,
hand picked. It will run on
91+ unleaded fuel.
~ ~ ~ ~ ~ ~ ~
Special features include all these new parts and
(Be sure to scroll down
to see a more detailed listing.)
- DOME PISTONS 10.1+ Seal
- Cam is a big 490+ lift hp hydraulic dual patterned high

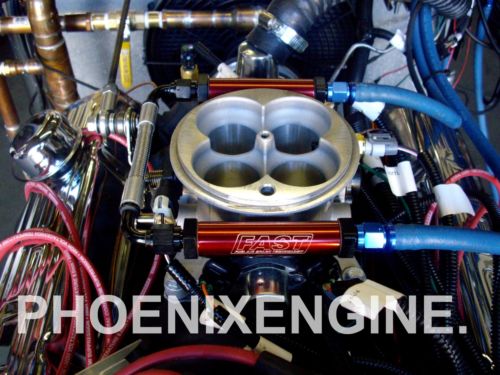

- Fast fuel 4 barrel Throttle Body Injection
- HEI distributor Pro Billet Street included
- 2800+ stall speed converter required
- Heavy duty roller timing chain, high performance
- New screw in studs, guide plates
- Roller rockers, Molly push rods
- Steel forged rods, nodular GM crankshaft
- New dual plane real polish intake manifold
- New P.E.R. harmonic balancer, timing flag
- Flex plate for auto transmission included (call on standard transmission)
- Chrome valve covers (ask about painted colors!)
- Timing chain cover
- Spark plug wires, spark plugs
- 5 qt oil pan (ask about 7 qt)
- Built from one of our Dyno tested and road proven packages. Your specific engine can be Dyno tested for an additional charge.
- Call for info on flex plate or fly wheel.
- Call for correct flex plate on automatics.
- Call for info on standard transmissions (4 or 5 speed, etc.)
- Comes complete, intake to oil pan. Some assembly may be needed.
comes with your Power 3 ® engine?
Here's a listing of the parts and machine labor for your
Power 3 ® engine from PhoenixEngine.com.
YOUR POWER 3 ® ENGINE
- Power 3 cam kit 490+ Speed Pro RPM
- Power 3 SP Seal Power hydraulic lifters
- Power 3 spring set, heavy duty (980 series spring sets)
- Polished Intake Manifold,
Dual plane power plus
- One piece stainless steel intake valves 194
- One piece stainless steel exhaust valves 1.5
- Premium positive valve seals, polyacrylate
- Heavy Duty roller timing chain
- Controlled internal oil system (a P.E.R. exclusive!)
- Heavy duty, high volume Melling oil pump
- Heavy duty steel collar oil shaft
- Heavy duty oil pickup screen
- High performance Speed Pro Dome hypereutectic pistons
- P.E.R.® HP Seal Power plasma molly rings
- Brass freeze plug kit, oil gallery plug kit
- High quality rear main seal, double lip polyacrylate
- Fel Pro PermaTorque heavy duty gaskets and gasket set
- King or Clevite main bearings, Real Tri metal, high quality
- King or Clevite rod bearings, Real Tri metal, high quality
- New rod nuts ARPs installed
- Cam bearings, high quality 360 Set
YOUR POWER 3 ® MACHINE
- P.E.R. 4-angle® valve
- Mill-matching surface heads
- Heavy duty thick wall valve guides
- Valve guides custom cut for posi-seals
- Jet vat block and magnifluxing
- Remove and replace all freeze plugs
- Remove and replace gallery plugs
- Remove and replace cam bearings
- Custom centerline boring of block (true 90 degree V8 centerline
- Power hone to fit pistons and rings
- Custom crank micro polish radius oil holes
- Rods pressed off, then heat fitted
- ARP rods bolts installed
- Rods checked for alignment
- Street balancing
THIS IS OUR TURN KEY PACKAGE
FOR THIS TYPE OF HIGH POWER ENGINE
FOR ANY CHANGES DESIRED,
JUST CALL AND WE WILL BUILD A CUSTOM ENGINE PACKAGE
FOR YOU FOR THE HORSEPOWER YOU NEED. YOU CAN ALSO CHANGE
THE COLOR, CHOOSING FROM OVER 25 DIFFERENT COLORS.
ALL OUR ENGINES ARE CUSTOM HAND BUILT:
327- 350- 383- 396- 427- 454 AND MORE!
Call to Order this engine
Toll Free 1-888-766-8044
08:00am - 5:00pm Monday-Friday
09:00am - 1:00pm Saturday
(Arizona does not observe Daylight Savings Time.
We are -7 GMT, or in other words MST all year round.)
This Power 3 ® Engine is Totally REBUILT
in our Machine Shop by Professionals from start to finish.
The Power 3 ® Engine Performance Combination was developed from
our over 45 years of experience on MUSCLECARS,
STREET STRIPS, CUSTOM TRUCKS, 4x4s, and JEEPS.
PhoenixEngine.com has built over 140,000 quality
engines to date.
Warranty and Shipping Info:
engine has a one year written warranty. Buyer
pays actual shipping costs if unable to pick up engine
from our shop in Phoenix AZ. Some state freight restrictions
apply. Payment due in full prior to shipping. We accept
Visa, Mastercard, Discover, money orders, cashier's checks and direct
deposit. (GET A DISCOUNT WITH
A DIRECT DEPOSIT!) Business or personal checks
must clear prior to shipping. Arizona residents must
add 8.3% sales tax.
Please call for core requirements.
Call PhoenixEngine.com today
Toll Free: 1-888-766-8044
Disclaimer: Please note that some parts are based
on availability. The brand names listed above are guidelines;
the exact brand name may not be available at the time
we build your engine. Pricing is deemed to be correct at time
of posting, but is not guaranteed. It is listed
as a guideline only. Please call us for complete
pricing on the engine built to your specific requirements.
These engines are built from our Dyno
tested and road proven packages in our shop.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!
Please be sure to read our full Disclaimer: CLICK HERE.
6/3/14 txt (140K engines & 44 yrs)
3/25/16 txt, bullets
* Note: When we custom build your engine,
you can choose from over 25 different colors or you can
supply the paint to have your engine painted the same color
as your car's finish!
Please note photos may vary from actual product as all our engines
are custom built.
