CHEVY 383ci — 406, 409, 426, 427 to 550hp
REDNIGHT ALUMINUM
HIGH PERFORMANCE
TURNKEY PACKAGE ENGINES

This is our new updated REDNIGHT Aluminum Turnkey Package!

THIS IS A LIMITED TIME SALE PRICING
The normal price of these engines is $100 more. Buy now to receive this special pricing!

Base Pricing from:
Chevy 383 — 406 HP or 409 HP: $4995 - Torque Range: 448 - 468 Ft Lbs Torque

The 406-409HP Engines come with Aluminum Heads.

The 406HP Engine comes with a Dual Pattern Cam. The 406HP Cam has vacuum for Power Brakes. Still has good Old School Sound.

The 409HP engine comes with a Single Pattern Cam. The 409HP engine Cam has a little less Vacuum, with a Great Old School Sound! This engine comes with the 4 Barrel Aluminum or Polished High Rise Intake.



383 CI, 426 HP = $5295 (470 ft lbs torque).

383 CI, 427 HP = $5295 (475 ft lbs torque).

The 426HP engines come with aluminum heads. The 426HP engine comes with a dual pattern cam. The 426HP engine cam has vacuum for power brakes. Still has good sound.

The 427HP engine comes with a single pattern cam. The 427HP engine has a little less vacuum, with a great Old School sound.

These engines can come with the 4 barrel high rise, aluminum or polished intake, or your choice of an aluminum or polished high rise air gap.


383 CI, 454 HP = $5895 (509 ft lbs torque) >>>>>>>

The 454 engines come with aluminum heads.

The 454HP engine comes with a dual pattern OR single pattern cam. The dual pattern cam has vacuum for power brakes. Still has good aggressive sound. The single pattern cam has a little less vacuum with a more aggressive Old School sound.


383 CI, 475 HP = $6495 — Dyno Tested at 521 ft/lbs torque.

The 475 HP engines come with aluminum heads.

The 475 HP engine comes with a single or dual pattern pattern cam. The 475 HP engine has a lot less vacuum. Requires vacuum can or vacuum pump. Great Old School sound.


383CI, 502 HP: from $6995 — Dyno Tested at 535 to 538 ft/lbs torque.

The 502 HP engines come with aluminum heads.

The 502 HP engine comes with a single or dual pattern cam. The 502 HP engine has a lot less vacuum. Great Old School sound.


383 CI, 527 HP: from $7495 — Dyno Tested at 530 to 541 ft/lbs torque

The 527 HP engines come with aluminum heads.

The 527 HP engine comes with a single or dual pattern cam. The 527 HP engine has a lot less vacuum. Great Old School sound.


383 CI, 550 HP: from $7995. — Dyno Tested at 565 to 570 ft/lbs torque.

The 550 HP engines come with monster aluminum heads, fully balanced and blueprinted.

The 550 HP engine comes with a single or dual pattern cam. This cam has a heavy radical idle. Strong mid range and top end. Requires vacuum can or vacuum pump. Still has extremely aggressive torque monster sound. This engine is for the guy who wants the best radical street engine!




This is from our new Aluminum Engine Series.
These Aluminum heads have 190 intake runners!
Aluminum heads with 185, 190, 200, or 210 intake runners are available; when you call you can choose the upgrades you want.
Aluminum heads are available in Edelbrock, Dart, or Pro-Filer heads.

Great HOT Street 202 Heads!!
This one is a real thumper, a real torque monster!



Ask about our Fast Track Startup:
That means this engine can be
Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.

If you choose a Fast Track Start Up, we have special pricing right now!

Click HERE to learn more
Fast Track animationabout FAST TRACK, andFast Track animation
to view a sample video.





>>>And also CLICK HERE to see a video
of a real-time Dyno run!<<<

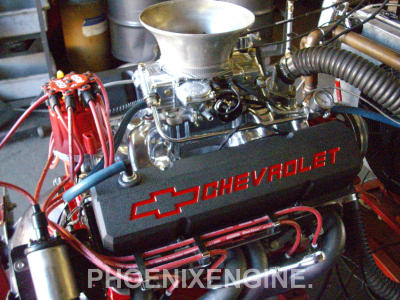

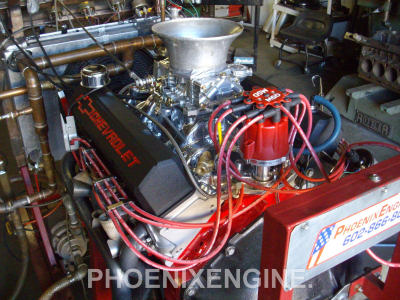

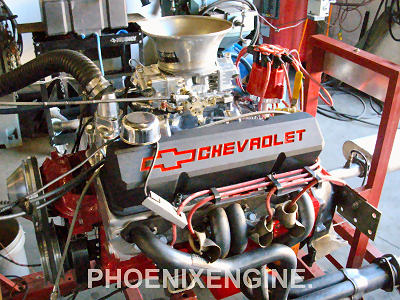

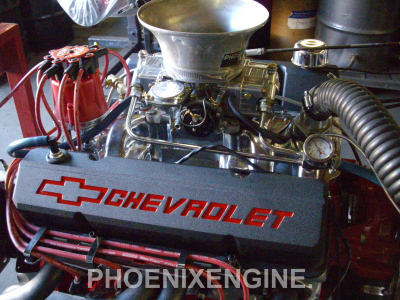

The Dyno video is of a similar engine but shows you how we do a Dyno run. The engine in the video was 355 HP at 380 ft lbs of torque. The video will open in a new window. The file is large so it may take a few minutes to download. You can click to start the download, and then continue perusing this page while it downloads.



SPECIAL FEATURES ON THIS TURNKEY CRATE ENGINE INCLUDE THESE NEW PARTS AND MORE:
(Some items may vary depending upon the size HP engine you choose. Be sure to scroll down the page to see a more detailed listing.)

  • This engine is a 4-bolt seasoned heavy duty small block.
  • Engine will run on unleaded fuel 91+ boost.
  • DOME PISTONS 10.5 to 12.1, depending upon HP range you choose; or ask us about forged pistons for the higher horsepower engines. We recommend forged pistons for the 454 HP engine and higher. Call us for full specs.
  • Dual patterned high performance OR single pattern cam: Speed Pro or Comp.
  • 2500 to 3000 Stall Speed Convertor required.
  • With a great Old School sound, this one is a real thumper, they will hear you!!
  • Holley 750 CFM carburetor, polished.
  • Pro Billett HEI distributor with MSD kit.
  • MSD 2-pack included;
    MSD 2 pack or MSD 6AL 3 pack is extra.
  • Plug wires and spark plugs.
  • Chrome air cleaner included, black is extra.
  • Water pump, water pump pulleys, and crank shaft pulleys are included.
  • Heavy duty roller timing chain high performance.
  • Comp cam screw-in studs, guide plates.
  • SS full roller rockers, SS molly push rods.
  • 600HP Steel forged rods with ARP bolts.
  • New scat 7000-9000 series crank.
  • New Air Gap intake aluminum or polished manifold
    Or you may choose Air Gap custom black wrinkle paint, no extra charge.
  • Please call our counter tech regarding your hood clearance: note that this intake is about 2 inches higher than a regular aluminum intake.
  • New high performance 8" harmonic balancer.
  • New custom flex plate to fit the horsepower application.
  • New GM valve covers, black & red crinkle bow tie.
  • New GM timing chain, black & red crinkle cover.
  • NOTE: The following upgrades raise the price of the engine but are very popular (we sell about three per week)...
    Flex plate for automatic transmission is included, call for standard transmission (4- 5- or 6-speed). Flywheel is extra.
  • 7 qt oil pan is included, no extra charge. Available in different colors.
  • One piece rubber design molded oil pan gasket.
    This pan gasket has load limiters to prevent over-tightening vs a stock cork-rubber gasket.
  • Includes street race balancing and blueprinting.
  • Built from one of our Dyno tested and road proven Dyno packages. Your specific engine can also be Dyno tested for an additional charge.
  • Call for info on flex plate or fly wheel.
  • Call for correct flex plate on automatics.
  • Call for info on standard transmissions (4 or 5 speed, etc.)
  • Comes complete, intake to oil pan. Some assembly may be needed.

Scroll down to see more parts and machine work included with this engine.

What comes with your Power 3® or Power 4® Engine?

Here's a listing of the parts and machine labor for your Power Engine® from PhoenixEngine.com.

Your Power Engine® ENGINE PARTS include:

  • Power® SpeedPro cam kit 510, 515, 520, 525+
  • Power® Comp cam kit 510, 515, 520, 525+
  • Power® hydraulic lifters Seal Power
  • Power® spring set, heavy duty (980 series spring sets)
  • Air Gap included custom black crinkle
  • One-piece stainless steel intake valves 202
  • One-piece stainless steel exhaust valves 1.6
  • Premium Positive valve seals, polyacrylate
  • Heavy Duty HP roller timing chain
  • Controlled internal oil system (a P.E.R. exclusive!)
  • Heavy duty, high volume Melling oil pump
  • Heavy duty steel collar oil shaft
  • Heavy duty oil pickup screen
  • High quality SpeedPro dome hypereutectic pistons; or call us regarding forged pistons for higher horsepower engines. We recommend forged pistons for 454HP and up.
  • P.E.R.® HP Speed Pro plasma molly rings
  • Brass freeze plug kit and oil gallery kit
  • High quality rear main seal, double lip polyacrylate
  • Fel Pro PermaTorque heavy duty gaskets and gasket set
  • Clevite main bearings, Real Tri metal, high quality
  • Clevite rod bearings, Real Tri metal, high quality
  • New 600HP+ steel forged rods with ARP bolts.
  • New Scat 7000-9000HP cranks.
  • Cam bearings, high quality 360 set



Your Power Engine® MACHINE LABOR includes:

  • P.E.R. 4-angle® valve job
  • Dart blueprinted mill-matched surface heads
  • Heavy duty thick wall bronze valve guides
  • Valve guides custom cut for posi-seals
  • New Blue Viton high performance seals.
  • Jet vat block and magnifluxing
  • Remove all freeze plugs
  • All new brass freeze plugs installed
  • Remove gallery plugs
  • All new gallery plugs installed
  • Remove cam bearings
  • All new 360 high quality cam bearings installed
  • Custom centerline boring of block
    True 90 degree V8 centerline boring
    Block is decked and Blue printed.
  • Power hone to fit pistons and rings
  • New custom Scat crank micro polish, radius oil holes.
  • New 600 HP rods
  • ARP Rods bolts installed
  • Rods and crank checked for blueprinting
  • Street race balancing




Upgrades available.
We can completely customize this engine
to suit your needs!

FOR ANY CHANGES NEEDED, JUST CALL AND WE WILL BUILD A CUSTOM ENGINE PACKAGE FOR YOU. YOU CAN ALSO CHANGE THE COLOR, CHOOSING FROM OVER 25 DIFFERENT COLORS.

ALL OUR ENGINES ARE CUSTOM HAND BUILT:
327- 350- 383- 396- 427- 454 AND MORE!

Call to order this engine:
Toll Free 1-888-766-8044
08:00am - 5:00pm MST Monday-Friday
09:00am - 1:00pm MST Saturday
(Arizona does not observe Daylight Savings Time. We are -7 GMT, or in other words Mountain Standard Time all year round.)

This Power4® engine is totally REBUILT in our machine shop by professionals from start to finish. The Power 4® Engine Performance Combination was developed from our over 45 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, and JEEPS. PhoenixEngine.com has built over 140,000 quality engines to date.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Payment due in full prior to shipping. We accept Visa, Mastercard, Discover, money orders, cashier's checks and direct deposit. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) Business or personal checks must clear prior to shipping. Arizona residents must add 8.6% sales tax.
Please call for core requirements.

We accept Visa    We accept MasterCard
   Discover credit card is accepted at Phoenix Engine

SPECIAL PROMO!! Call NOW for FREE SHIPPING to Southern California! We also offer super shipping rates to all 48 continental states. Call for rates to Hawaii, Alaska, or international destinations.

Call PhoenixEngine.com today to order!
Toll Free: 1-888-766-8044

Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested packages in our shop and road proven.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

Please be sure to read our full Disclaimer: CLICK HERE.

PC updated 10/11/12, 10/15/12
Txt updated 10/15/12
1/15/13 txt
6/11/13 New 383 427: txt,pics, pc
6/12/13 added fastrack pic
7/30/13 txt
10/14/13 txt/core
12/16/13 txt
5/8/14 pc, txt
6/3/14 txt (140K engines & 44 yrs)
9/20/14 txt
10/31/14 2 new engines 406/409, txt and pc
12/7/15 hours
3/25/16 txt, bullets, moveup
9/14/16 txt,dyno,dsclmr
2/18/17 pc,txt
5/25/17 tax
10/18/17 txt

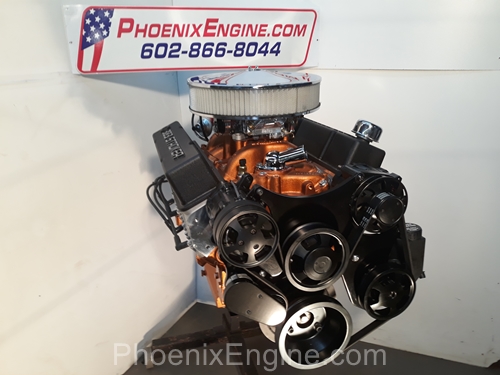

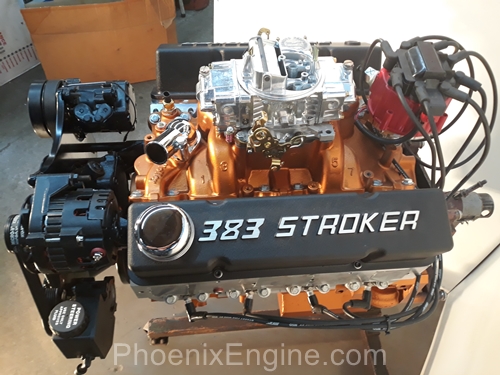

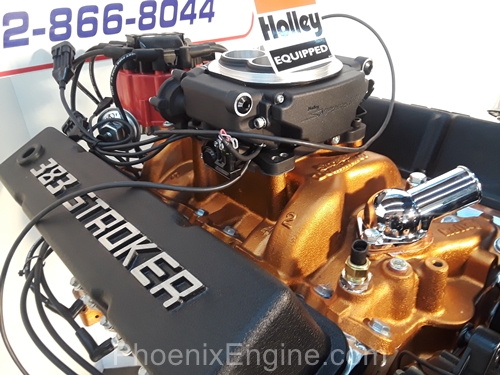

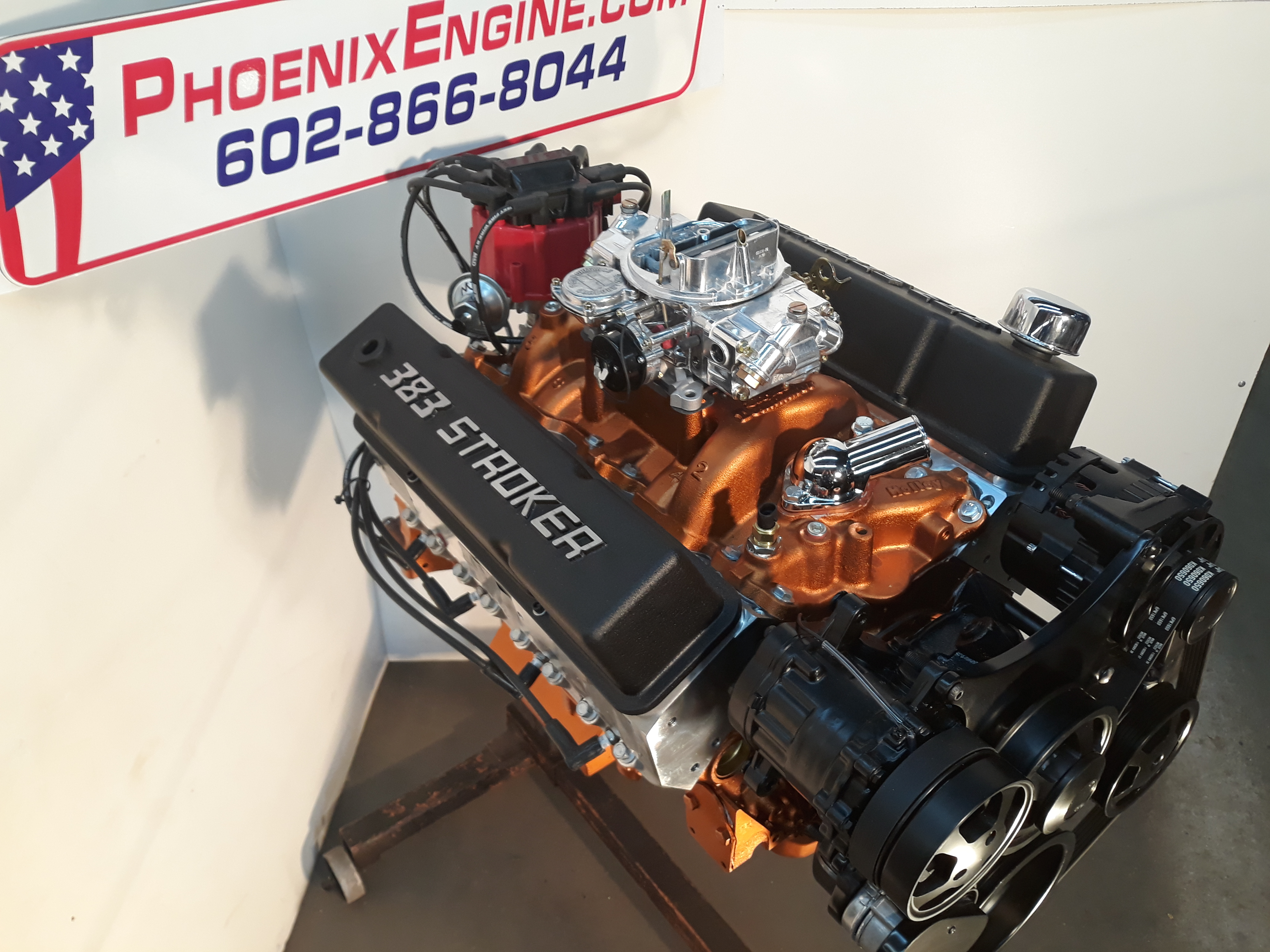

Have your engine Fast Tracked by us and it will be ready to run out of the box! Chevy 383 CI, 454 HP

Chevy 383 CI, Rocky Iron turnkey engine

Chevy 383 CI, Rocky Iron midnight turnkey engine

Chevy 383 turnkey engine

Chevy 383 CI, Rocky Iron Aluminum heads turnkey engine

Chevy 383 CI, midnight Rocky Iron turnkey engine

Chevy 383 turnkey engine from Phoenix Engine Rebuilders

Fast Track readout of Chevy 383 turnkey engine from Phoenix Engine Rebuilders

* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
