CHEVY 350 — 375HP to 510HP GOLD NIGHT
TURNKEY CRATE ENGINE
(Full Rollerized Engine)
4 BOLT MAIN — aluminum heads

Pricing as a crate engine:*
375 HP: $4095 — 401 to 416 ft/lbs torque range
385 HP: $4095 — 410 to 425 ft/lbs torque range
400 HP: $4195 — 428 to 442 ft/lbs torque range
415 HP: $4475 — 436 to 451 ft/lbs torque range
430 HP: $4695 — 458 to 468 ft/lbs torque range <<<featured in photos
450 HP: $4895 — 471 to 481 ft/lbs torque range
475 HP: $4995 — 488 to 494 ft/lbs torque range
480 HP: $5095 — 502 to 516 ft/lbs torque range
510 HP: $5195 — 521 to 532 ft/lbs torque range

* A "Crate Engine" means "Intake to Pan." Just give us a call if you would like this engine in a TURNKEY package! Please note that prices will vary depending upon the package and any additional items/specifications you need for your application.

Turnkey packages up to 415HP start from $995 to $1095 to $1195.

Turnkey packages for 430HP and up start from $1295 to $1495.

Ask for pricing on higher horsepower engines. We can build any size engine you need!

Ask about our Fast Track Startup:
That means this engine can be Real Ready to Run OUT OF THE BOX if you choose our our Fast Track startup, which includes break in, super tuning, jetting, and more.

If you choose to do a Fast Track Start Up, we have special pricing right now on these engines!

Click HERE to learn more
Fast Track animationabout FAST TRACK, andFast Track animation
to view a sample video.

This high-revving engine is designed especially for CUSTOMIZED KIT CARS:
Ferraris, Jaguars, Aston Martins, Cobras, and Ground-Up Customized kit cars.

Roller High-Performance with Street Race
Aluminum heads that WORK!

(Torque estimates vary per engine specs, based on size of carburetor, type of intake, type of heads, type of cam...)

This Power 3® Gold Night Engine will run with the best of them. Steve S Jr uses it in his Aston Martin in Florida and David Race Jr uses it in California and on the Autobon in Germany!

This is a Chevy High Performance engine, built from one of our Dyno Packages. We have put this engine in custom kit cars, Jaguars, Aston Martins, Cobras, and custom ground up kit cars. The capability of this midrange to high range engine is that it has very strong top end consistent long range capabilities.

NEW ROLLER CAM PACKAGE for this high power engine! One of the unique facts about this roller cam combo is the sound of the engine. With this roller cam the engine has a mid to high revving capability! Give us a call for your application.

Ask us about our turnkey package for this type of high power roller engine! We have many packages for this engine.

Comes Completely Assembled

This Power 3 engine combination would be great in any kit car, muscle car, street, hot rod, kit car, custom truck, 4X4, or Jeep. We have over 44 years experience creating over 140,000 excellent street machine engines.

This is a great street — High mid torque engine with a great old school sound!
This engine was built from one of our Dyno packages.
All our engines are custom hand built.
Your engine can also be Dyno tested, for an additional charge.

This Engine is a 4-bolt Seasoned Heavy Duty Chevy Small Block. Engine Will Run on unleaded fuel+.

  • SEAL POWER HYPEREUTECTIC HP SS PISTONS
    Compression ratios: 9.5, 10.1, 10.3, 10.6, 11.1, etc in accordance with customization
  • We have 10 plus Roller Cams from 480, 495, 502, 510, 520, 540, 550 to 580+ Lift Hp Cams that are hydraulic roller dual patterned.
    Very good street High Torque engine (great super mid range)
  • Built from one of our Dyno tested performance packages with ALUMINIUM HEADS.
    Street Aluminum Heads that do WORK!
    (Your specific engine can also be Dyno tested for an additional charge.)
  • Holley 750 CFM carburetor, polished.
    Edelbrock 750 CFM carburetor accepted for smaller HP engines.

  • Pro Billett HEI distributor with MSD kit.

  • MSD 2-pack included;
    3-pack 6AL box kit is extra.

  • Plug wires and spark plugs.

  • Chrome air cleaner included,
    black is extra.

  • This engine does include water pump and pulleys.

  • Heavy Duty True Roller Timing Chain
    STR Roller Rockers, MSTR Molly Push Rods
    STEEL FORGED RODS ARPs, NODULAR STM CRANK
  • NEW Polished HP Intake Manifold
    2500, 2800 Stall Speed Convertor Required
  • Pro Hp 8" Hp Harmonic Balancer
  • Timing flag
  • Flex plate for automatic transmission is included, call for standard transmission (4- 5- or 6-speed).
    Fly wheel is extra.
  • Chrome valve covers
  • Timing chain cover
  • 7qt oil pan
  • Built from one of our Dyno tested and road proven Dyno packages. Your engine can also be Dyno tested for an additional charge.
  • Call for info on flex plate or fly wheel.
  • Call for correct flex plate on automatics.
  • Call for info on standard transmissions (4 or 5 speed, etc.)
  • Comes complete, intake to oil pan. Some assembly may be needed.


What comes with your Power 3® engine?

Here's a listing of the parts and machine labor for your Power 3 engine from PhoenixEngine.com.

YOUR POWER 3 ENGINE PARTS include:

  • Power 3 Comp Roller cam kit Big 509, 520+ lift
  • Power 3 SP SS Hp hydraulic Roller lifters
  • Power 3 spring set, heavy duty ( 1200 series sets)
  • New air polished dual plane intake
  • ALUMINIUM HEADS
  • One-piece Stainless Hp steel intake valves 202
  • One-piece Stainless Hp steel exhaust valves 1.6
  • Premium positive valve seals,hp Viton
  • Heavy duty True roller timing chain
  • Race Controlled internal oil system (a PER exclusive!)
  • Heavy duty, Melling High volume oil pump
  • Heavy duty steel moly collar oil shaft
  • Heavy duty oil pickup screen ops
  • High per Speed Pro hypereutectic pistons
  • P.E.R.® HP Speed Pro SS plasma moly rings
  • Brass freeze plug kit, gallery plugs kit
  • High quality rear main seal double lip polyacrylate
  • Fel Pro PermaTorque heavy duty hp gasket set
  • Clevite or Race King Main bearings, True Tri metal, high quality
  • Clevite or Race King Rod bearings, True Tri metal, high quality
  • New rod ARPs nuts ARP bolts installed
  • Clevite or Race King Cam bearings, high quality 360 Set

POWER 3® ENGINE MACHINE LABOR includes:

  • P.E.R. 4-angle® valve job
  • ALUMINIUM HEADS
  • Heavy duty thick wall Step Brass valve guides
  • Valve guides custom cut for posi-seals
  • Jet vat block and magnifluxing
  • Remove and replace all freeze plugs
  • Remove and replace all gallery plugs
  • Remove and replace cam bearings
  • Custom centerline boring of block
    True 90 degree V8 centerline boring
  • Power hone to fit pistons and rings
  • Power hone Race File fit Rings
  • Custom crank Micro polish radius oil holes
  • Rods pressed off, then heat fitted
  • Rods checked for alignment
  • Race Street balancing
  • Block Deck to Deck
  • Blueprint to Match Deck to heads


** Ask About Our TurnKey Package **
** for this type of High Power Engine **

Call to order this engine:
Toll Free 1-888-766-8044
08:00am - 5:00pm Monday - Friday
09:00am - 1:00pm Saturday
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.

This Power 3® Engine is totally REBUILT in our Machine Shop by professionals from start to finish. The Power 3® Engine was developed from our over 45 YEARS of experience on MUSCLECARS, STREET, STRIPS, HOTRODS, 4x4s, CUSTOM TRUCKS & JEEPS. PhoenixEngine.com has built over 136,000 quality engines to date. All our engines are custom hand built including 327 - 383 - 396 - 427 - and 454.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Arizona residents must add 8.6% sales tax. Payment due in full prior to shipping. GET A DISCOUNT WITH A DIRECT DEPOSIT! We accept Visa, Mastercard, Discover, money orders and cashier's checks. Business or Personal checks must clear prior to shipping.
Call for core requirements.
We accept Visa    We accept MasterCard   Discover credit card is accepted at Phoenix Engine

Super shipping rates to all 48 continental states! We also now ship to Hawaii, Alaska, and international destinations!

-----------------------------------------------------
Call PhoenixEngine.com today to order!
Toll Free: 1-888-766-8044

Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested packages in our shop and road proven.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

Please be sure to read our full Disclaimer: CLICK HERE.

Updated 10/12/2012
1/15/13 txt
10/14/13 txt/core
12/16/13 -12/18/13 chg to add turnkey, t/k pics. No pc yet.
6/3/14 txt (140K engines & 44 yrs)
9/20/14 txt
12/7/15 hours
3/15/16 txt, bullets, moveup
9/14/16 txt,dyno,dsclmr
5/25/17 tax

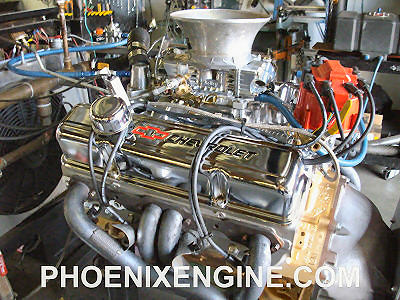

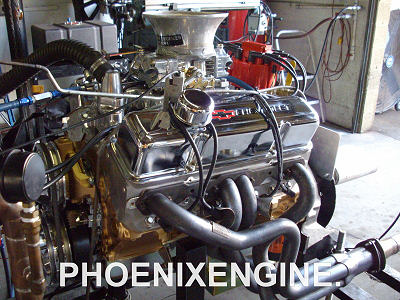

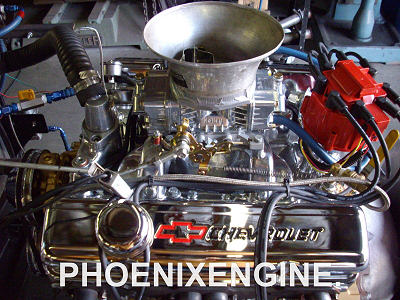

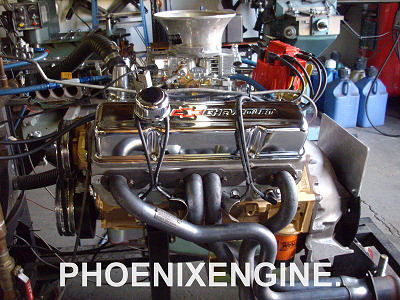

Photos of this engine as a Turnkey engine:

Chevy 350 Gold Night Turnkey Engine

Chevy 350 Gold Night Turnkey Engine

Chevy 350 Gold Night Turnkey Engine

Chevy 350 Gold Night Turnkey Engine

Chevy 350 Gold Night Turnkey Engine

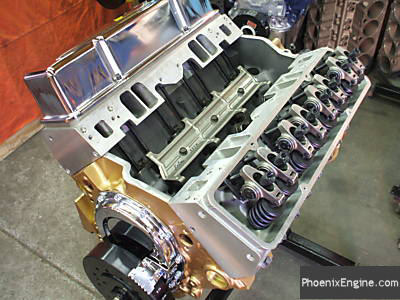

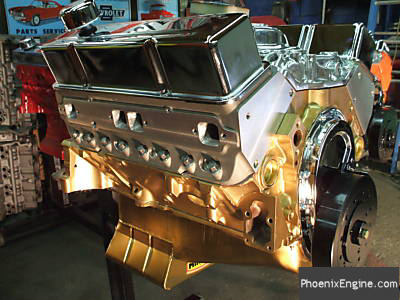

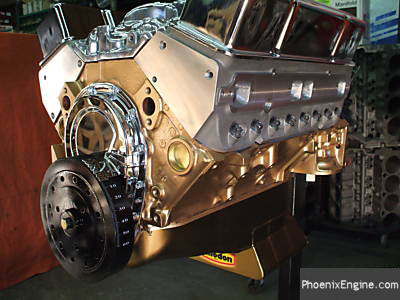

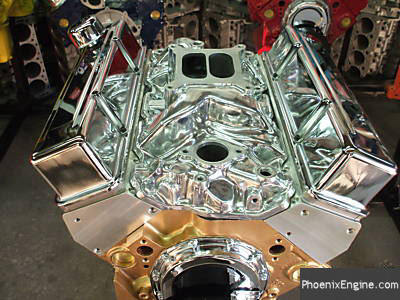

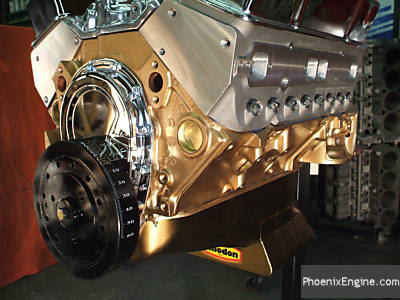

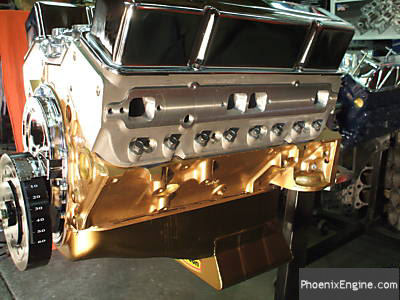

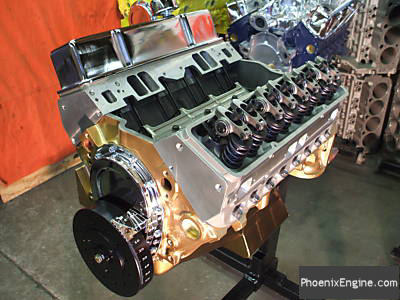

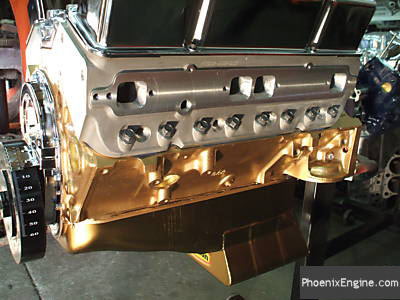

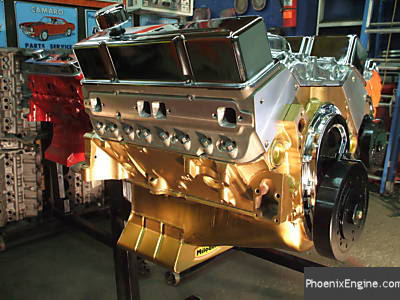

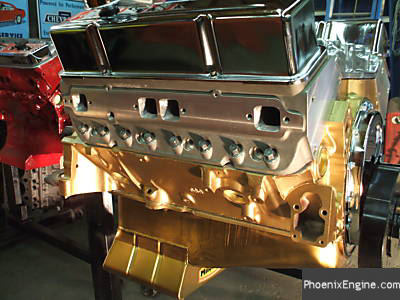

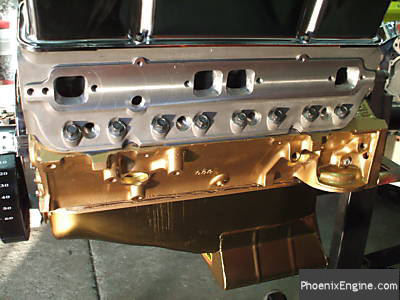

Photos of this engine as a crate engine:

Chevy gold crate engine

Chevy gold crate engine

Chevy gold crate engine

Chevy gold crate engine

Chevy gold crate engine

* Note: When we custom build your engine, you can choose from 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note that photos may vary slightly from actual shipped product as all our engines are custom built.
