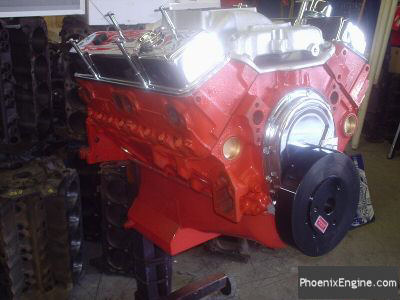

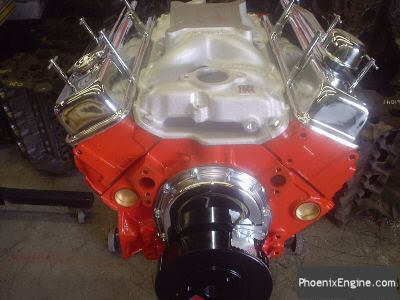

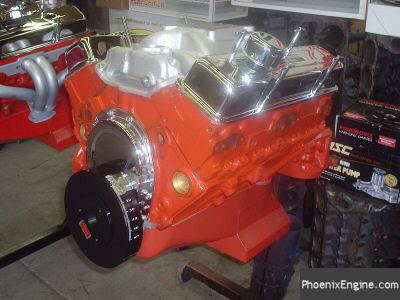

CHEVY 350 — 4 BOLT MAIN
ORANGE NIGHT CRATE ENGINE
A "CRATE ENGINE" means "Intake
to Pan." Just give us a call if you'd like this engine
in a TURNKEY package!
Turnkey packages start from $995
to $1095 to $1195.
Chevy 350 — 375 HP (4 bolt):
$2795 (392 ft
lbs torque) **
Chevy 350 — 395 HP (4 bolt):
$2995 (414 ft lbs torque) **
Chevy 350 — 410 HP (4 bolt):
$3095 (432 ft lbs torque) **
THIS IS A LIMITED TIME SALE PRICING
The normal price of these engines is $100 more. Buy now to receive the special
(Crate engine = Intake to pan)
**For just $495 more, receive a SUPER
Get Dart or World Iron Heads, an $895 upgrade, for
only $495 with this special limited time offer.
These Power 3
engines are great, hot Street Engines! Talk
about a real Thumper, a Torque Monster, with a super
Old School sound!
These Power 3 Engines
are real TORQUE MONSTERS and would be GREAT
in your MUSCLECAR, STREET ROD, Truck, 4X4, or Jeep. This
is an excellent Street machine engine. These
engines are Seasoned Heavy Duty Chevy Small Blocks. These
engines require premium plus gasoline.
our Fast Track Startup:
That means this engine can
be Real Ready
to Run OUT OF THE BOX if
you choose our Fast Track startup, which includes
break in, super tuning, jetting, and more.
you choose a Fast Track Start Up, we have special
pricing right now!
HERE to learn more
FAST TRACK, and
to view a sample video.
Special features on this crate engine include
these new parts and more: (Be
sure to scroll down the page to see a more detailed listing.)
SEAL POWER HYPEREUTECTIC
(Ask about our Keith Black upgrades!)
10:2, 10:5, 10:7, 11:1, 11:5
Cam is BIG 490 - 495 - 500 - 505 - 509 - 510 - 514
Hydraulic Dual Patterned High
Minimum 2500 Stall Speed Convertor Required
True roller timing chain high performance
Screw In Studs, Guide plates
Roller Rockers, SS Molly Push Rods
Steel forged rods, nodular crank
(Call for our ARP rod bolts upgrade!)
Timing chain cover

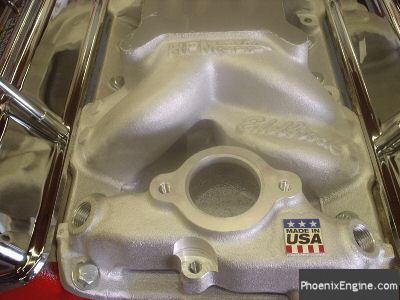

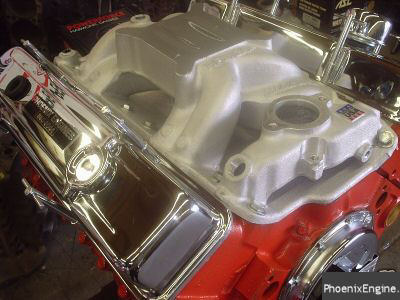

NEW AIR GAP Intake Manifold
8" Harmonic Balancer
- Built from one of our Dyno packages. (Original engine was dyno tested and road proven. Your engine can be dyno tested for an additional charge.)
- Call for info on flex plate or fly wheel.
- Call for correct flex plate on automatics.
- Call for info on standard transmissions (4 or 5 speed, etc.)
- Comes complete, intake to oil pan. Some assembly may be needed.
What comes with your Power 3®
Here's a listing of the parts and machine labor for your
Power3® engine from PhoenixEngine.com.
YOUR POWER 3® ENGINE
- Power 3 cam kit Speed Pro: 490, 500, 510+
(Call for upgraded
- Power 3 hydraulic lifters
- Power 3 spring set, heavy duty ( 1000 series sets)
- Edelbrock Air Gap Included
- One-piece steel intake valves:
1.94 for street heads
202 if you buy the World heads
- One-piece steel exhaust valves:
1.5 for street heads
1.6 if you buy the World heads
- Premium positive valve seals, polyacrylate
- True roller timing chain
- Controlled internal oil system (a PER exclusive!)
- Heavy duty, high volume Melling oil pump
- Heavy duty steel collar oil shaft
- Heavy duty oil pickup screen
- High quality American made SP Dome hypereutectic pistons
- P.E.R.® High Performance plasma SP molly rings
- Brass freeze plug kit
- High quality rear main seal double lip polyacrylate
- Fel Pro PermaTorque heavy duty
- Clevite Main bearings, Tri metal, high quality
- Clevite Rod bearings, Tri metal, high quality
- New rod nuts installed
- Cam bearings, high quality 360 Set
POWER 3® ENGINE MACHINE
- P.E.R. 4-angle® valve job
- Mill-matching surfaced heads
- Heavy duty thick wall valve guides
- Valve guides custom cut for posi-seals
- Jet vat block and magnifluxing
- Remove and replace all freeze plugs
- Remove and replace gallery plugs
- Remove and replace cam bearings
- Custom centerline boring of block
True 90 degree V8 centerline
- Power hone to fit pistons and rings
- Custom crank micro polish radius oil holes
- Rods pressed off, then heat fitted
- Rods checked for alignment
- Street balancing
CAN OPTIONALLY ORDER THIS ENGINE
WITH A 7 QT OIL PAN.
For any changes needed, just call and we will build
a custom engine package for you with the horsepower
you want. You can also change the color, choosing
from over 25 different colors.
ALL OUR ENGINES 327 - 350 - 383 - 396 - 427 - 454
ARE CUSTOM HAND BUILT.
Comes Completely assembled.
Call to order this engine:
Toll Free 1-888-766-8044
08:00am - 5:00pm Monday - Friday
09:00am - 1:00pm Saturday
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.
is totally REBUILT in our Machine Shop by professionals
from start to finish. The Power Engine®
Performance Combination was developed from our over
45 years of experience on MUSCLECARS, STREET STRIPS,
CUSTOM TRUCKS, 4x4s, and JEEPS. PhoenixEngine.com has
built over 140,000 quality engines to date.
Warranty and Shipping Info:
This engine has a one year
written warranty. Buyer pays actual shipping costs if
unable to pick up engine from our shop in Phoenix AZ.
Some state freight restrictions apply. Payment due in
full prior to shipping. We accept Visa, Mastercard, Discover, money
orders, cashier's checks and direct deposit. (GET
A DISCOUNT WITH A DIRECT DEPOSIT!) Business
or personal checks must clear prior to shipping. Arizona
residents must add 8.3% sales tax.
Call for core information.
Call PhoenixEngine.com today to
Toll Free: 1-888-766-8044
Disclaimer: Please note that some parts are based
on availability. The brand names listed above are guidelines;
the exact brand name may not be available at the time
we build your engine. Pricing is deemed to be correct at time
of posting, but is not guaranteed. It is listed
as a guideline only. Please call us for complete
pricing on the engine built to your specific requirements.
These engines are built from our Dyno
tested packages in our shop and road proven.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!
Please be sure to read our full Disclaimer: CLICK HERE.
PC Updated 10/11/2012
Txt updated 10/15/12
6/3/14 txt (140K engines & 44 yrs)
3/9/16 txt,bullets,moved up
* Note: When we custom build your engine,
you can choose from over 15 different colors or you can
supply the paint to have your engine painted the same color
as your car's finish!
Please also note that photos may vary slightly from actual shipped
product as all our engines are custom built.
