CHEVY 350 325 to 427 HP - 2nd Gen VORTEC
MIDNIGHT BLACK SERIES CRATE ENGINE

GOOD PULL + STREET
BEST DEAL ON SECOND GENERATION VORTEC

A "Crate Engine " means "Intake to Pan." Just give us a call if you'd like this engine in a TURNKEY package!

Turnkey packages start from $995 to $1095 to $1195 for up to 406 HP, added to the Crate Engine price.
Please call for pricing on the 427HP turnkey package upgrade.

CRATE ENGINE PRICING from just $2595:
(These prices are for the flat tappet hydraulic cam package):

325 HP = $2595 (357 to 365 ft lbs torque)
Turnkey: Add $995 for a total of $3590.
(This engine has good vacuum dual patterned cam.)

335 HP to 345 HP = $2695 (366 to 378 ft lbs torque)
Turnkey: Add $1095 for a total of $3790.
(Still good vacuum, good torque numbers, dual patterned cam.)

355 HP to 365 HP = $2895 (387 to 396 ft lbs torque)
Turnkey: Add $1095 for a total of $3990.
(Little less vacuum, single pattern cam but good Old School sound!)

375 HP = $3195 (410 to 420 ft lbs torque)
Turnkey: Add $1195 for a total of $4390.
(Less vacuum single pattern cam, good Old School sound!)

406 HP = $3495 (428 to 432 ft lbs torque)
Turnkey: Add $1195 for a total of $4690.
(Less vacuum but okay for power brakes. Recommended for the Street.)

409 HP = $3495 (425 to 430 ft lbs torque)
Turnkey: Add $1195 for a total of $4690.
(Single pattern cam but best Old School sound.)

427 HP = $3695 (456 to 460 ft lbs torque)
Turnkey: Add $1295 for a total of $4990.
(Cam is a single pattern aggressive cam with low vacuum, but awesome Old School sound.)

THIS IS A LIMITED TIME SALE PRICING
The normal price of these engines is $100 more. Buy now to receive the special pricing above!

Please note that to put the perimeter valve covers on the engine like in the photos, requires a conversion valve cover and head adapter. Additional charge $99.95.

Call for our upgraded roller cam package!
for example:

355 HP roller cam engine would be $4490. Torque range 390 - 406 ft lbs.

375 HP roller cam engine would be $4890. Torque range 410 - 425.

406 HP roller cam engine would be $5190. Torque range 430 - 440.

425 HP roller cam engine would be $5590. Torque range 455 - 464.
Cam with less vacuum, okay for power brakes.

427 HP roller cam engine would be $5590. Torque range 455 - 466.
Cam has a little less vacuum, and more aggressive great Old School sound.

435 HP roller cam engine would be $5890. Torque range 460 - 470.
Cam has a lot less vacuum. Vacuum cam or pump required for power brakes.

455 HP roller cam engine would be $6090. Torque range 465 - 475.
Cam has a lot less vacuum. Vacuum cam or pump required for power brakes. This has a very aggressive, great Old School sound.

460 HP roller cam engine would be $6290. Torque range 470 - 475.
Cam has a lot less vacuum. Vacuum cam or pump required for power brakes. This has a very aggressive, great Old School sound.

Please call on torque specs as we are testing all these engines now.

Ask about our Fast Track Startup:
That means this engine can be
Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.

If you choose a Fast Track Start Up, we have special pricing right now!

Click HERE to learn more
Fast Track animationabout FAST TRACK, andFast Track animation
to view a sample video.

One of the unique facts about the second generation Vortec and roller cam combinations is the sound of the engine with a roller cam — mid to high revving capabilities. Please give us a call for your application.

Don't forget to ask about our TURNKEY packages!

Note that this engine can be custom built to accommodate a 4 barrel high rise air gap intake as displayed in the photos to the right. Also, if you buy this engine with the 4 barrel intake, then the engine can apply to 1955 and up applications or whatever muscle car or kit car combination you have. This engine can also be built to use the factory spider injection manifold.

Special upgrade pricing:
THESE ARE SUPER SPECIAL DISCOUNTS, AVAILABLE FOR A SHORT TIME ONLY!! THESE SPECIAL DISCOUNTED UPGRADES ARE AVAILABLE ONLY FOR TURNKEY PACKAGES!!

-- Aluminum dual plane 4 barrel high rise intake manifold from
$9.95
-- Polished dual plane 4 barrel intake high rise manifold from $49.95
-- Aluminum dual plane air gap high rise intake manifold from
$49.95
-- Polished dual plane air gap high rise intake manifold from
$99.95

This Power2 Engine combination would be great in your muscle car, street rod, truck, 4x4 or Jeep. This engine is a 2-bolt seasoned heavy duty Chevy Small Block (4-bolt is available for additional fee). Engine will run on unleaded fuel. Comes completely assembled. Please call for core information.

Special features on this crate engine include these new parts and more: (Be sure to scroll down the page to see a more detailed listing.)

  • FLAT TOP or DOME PISTON compression ratios 9:1, 9:3, 9:5, 9:7, 10:1, 10:5, 11:1, 11:5+ depending upon HP range
    Speed Pro HYPEREUTECTIC PISTONS

  • Cam sizes depending upon HP 450/460/470/480/488/494/500/509/510/515/
    520/525/529/540+ lift HP cam
    Call for custom cam applications!

  • Seal Power or Comp Cam, depending upon your HP choice and application. Most cams are hydraulic dual patterned for best street high performance.

  • Heavy duty roller timing chain HP.

  • Screw In Studs, Guide plates: depending upon your choice of engine and horsepower, screw in studs and guide plates may be included.

  • Roller Rockers, Molly Push Rods: depending upon your choice of engine and horsepower, roller tip rockers and molly push rods may be included.

  • STEEL FORGED RODS, ONE PIECE HEAVY DUTY NODULAR CRANK.

  • One piece rear main seal: of the advantages of the later GM block with the one piece rear main seal is with the higher HP applications, there is less tendency for rear main seal leaks.

  • New style one piece rubber oil pan gasket.

  • SEAL POWER HYPEREUTECTIC PISTONS depending upon your choice of engine and HP, can be either flat top or dome pistons.

  • P.E.R. 8" Harmonic Balancer included.

  • Flex Plate or fly wheel type unit, depending upon your choice of engine and HP, are extra.

  • Your choice of late chrome valve covers, chrome timing chain cover, timing flag, or choice of engine color is at NO EXTRA CHARGE.

  • Chrome or Steel 5 qt oil pan included. (We recommend upgrading to a 7qt oil pan for this high power type engine.

  • Built from one of our Dyno tested and road proven Dyno packages. Your engine can also be Dyno tested for an additional charge.

  • Call for info on flex plate or fly wheel.

  • Call for correct flex plate on automatics.

  • Call for info on standard transmissions (4 or 5 speed, etc.)

  • Some assembly may be needed.

What comes with your
Power 2® / Power 3® engine?

Here's a listing of the parts and machine labor for your Power 2® / Power 3® Engine from PhoenixEngine.com.


POWER 2® / Power 3® ENGINE PARTS include:

  • Power 2® or Power 3® Speed Pro cam kit — 450/460/470/480/488/494/
    500/509/510/515/520/525/529/540+
    For roller cam applications, please call us.
  • Power 2® or Power 3® Seal Power hydraulic lifters.
  • Power 2® or Power 3® spring set, heavy duty (940/960/980/990 series set, depending upon cam type, hydraulic flat tappet cam or roller cam).
  • Call for pricing on Air Gap Polished Intake or Polished Dual Plane Intake, or Aluminum air gap Intake.
  • Heavy duty Stem steel intake valves:
    1.94 for smaller horsepowers, and 202 for the larger horsepower engines.
  • Heavy duty Stem steel exhaust valves:
    1.5 for smaller horsepowers, and 1.6 for the larger horsepower engines.
  • Premium positive valve seals, viton, polyacrylate
  • Heavy duty roller timing chain
  • Controlled internal oil system (a PER exclusive!)
  • Heavy duty, high volume Melling oil pump
  • Heavy duty steel collar oil shaft
  • Heavy duty oil pickup screen
  • High quality Speed Pro hypereutectic pistons
  • P.E.R.® SP High Performance plasma molly rings
  • Brass freeze plug kit and oil gallery kit
  • High quality rear main seal double lip polyacrylate
  • Fel Pro PermaTorque heavy duty gaskets and gasket set
  • King or Clevite Main bearings, real Tri metal, high quality
  • King or Clevite Rod bearings, real Tri metal, high quality
  • New rod nuts installed
  • Cam bearings, high quality 360 Set



POWER 2® / POWER 3® ENGINE MACHINE LABOR includes:

  • P.E.R. 4-angle® valve job
  • True second generation Vortec heads
    These are the popular heart-shaped chamber heads
    !
  • Mill-matching surfaced heads
  • Heavy duty steel thick wall valve guides
  • Valve guides custom cut for posi-seals
  • Jet vat block and magnifluxing
  • Remove and replace all freeze plugs
  • Remove and replace gallery plugs
  • Remove and replace cam bearings
  • Custom centerline boring of block
    True 90 degree V8 centerline boring
  • Power hone to fit pistons and rings
  • Custom crank micro polish radius oil holes
  • Rods pressed off, then heat fitted
  • Rods checked for alignment
  • Street balancing

NOTE: YOU CAN ORDER THIS ENGINE WITH A 7 QT OIL PAN FOR AN ADDITIONAL FEE.
For any changes needed, just call and we will build a custom engine package for you with the horsepower you want. You can also change the color, choosing from over 25 different colors.
ALL OUR ENGINES 327- 350- 383- 396- 427- 454 ARE CUSTOM HAND BUILT.

Comes Completely assembled.

Call to order this engine:
Toll Free 1-888-766-8044
08:00am - 5:00pm Monday - Friday
09:00am - 1:00pm Saturday
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.

This Power Engine® is totally REBUILT in our Machine Shop by professionals from start to finish. The Power Engine® Performance Combination was developed from our over 44 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, and JEEPS. PhoenixEngine.com has built over 140,000 quality engines to date.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Payment due in full prior to shipping. We accept Visa, Mastercard, Discover, money orders, cashier's checks and direct deposit. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) Business or personal checks must clear prior to shipping. Arizona residents must add 8.6% sales tax.
Call for core information.
We accept Visa    We accept MasterCard    Discover credit card is accepted at Phoenix Engine

SPECIAL PROMO!! Call NOW for FREE SHIPPING to Southern California! We also offer super shipping rates to all 48 continental states. Ask about shipping to Hawaii, Alaska, and international destinations.



Call PhoenixEngine.com today to order!
Toll Free: 1-888-766-8044

Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested packages in our shop and road proven.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

Please be sure to read our full Disclaimer: CLICK HERE.

Updated 10/11/2012
Txt updated 10/15/12
1/15/13 txt
10/14/13 txt/core
1/22/14 added t/k pics
5/8/14 pc & txt
6/3/14 txt (140K engines & 44 yrs)
9/20/14 txt
10/2/14 txt/core
12/7/15 hours
1/8/16 pc, txt
3/9/16 txt,bullets
9/14/16 dsclmr
5/25/17 tax

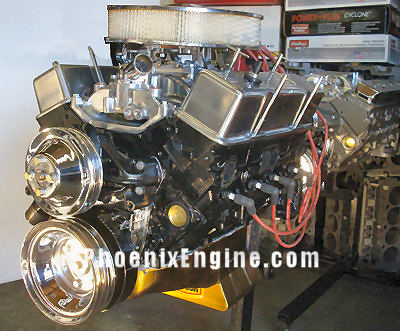

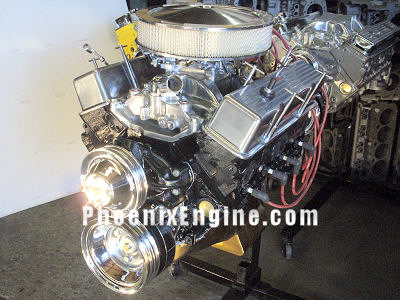

Photos of this engine in a TurnKey Package:

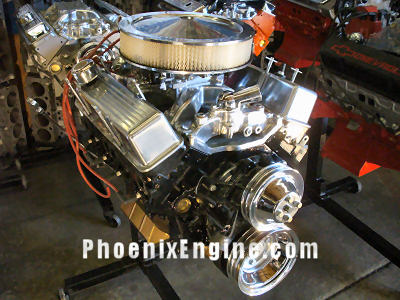

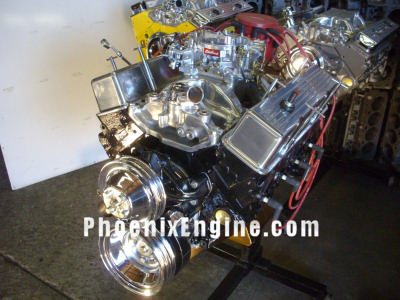

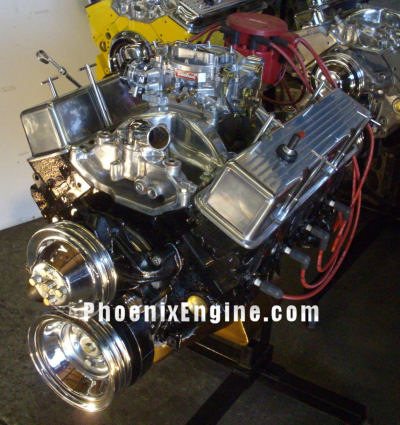

Chevy 350 with turnkey package setup

Chevy 350 with turnkey package setup

Chevy 350 with turnkey package setup

Chevy 350 with turnkey package setup

Chevy 350 with turnkey package setup

Chevy 350 with turnkey package setup

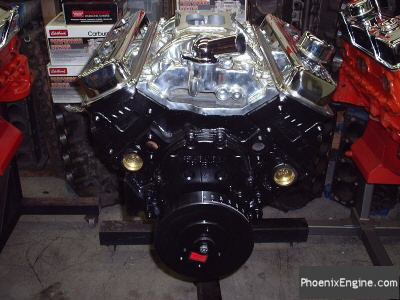

Photos of this engine as a Crate Engine:

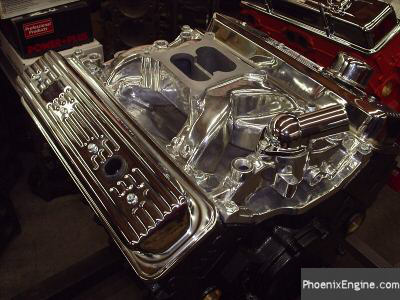

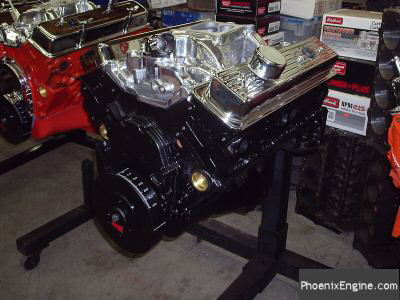

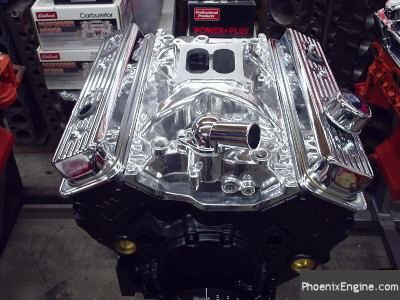

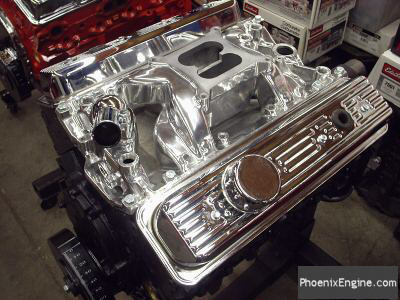

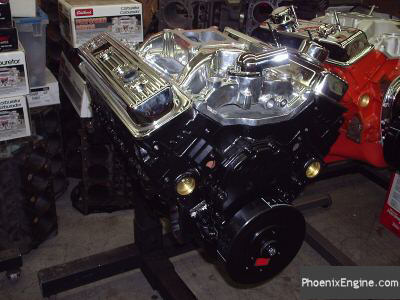

Chevy 350 crate engine

Chevy 350 crate engine

Chevy 350 crate engine

Chevy 350 crate engine

Chevy 350 crate engine

Chevy 350 crate engine

* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
